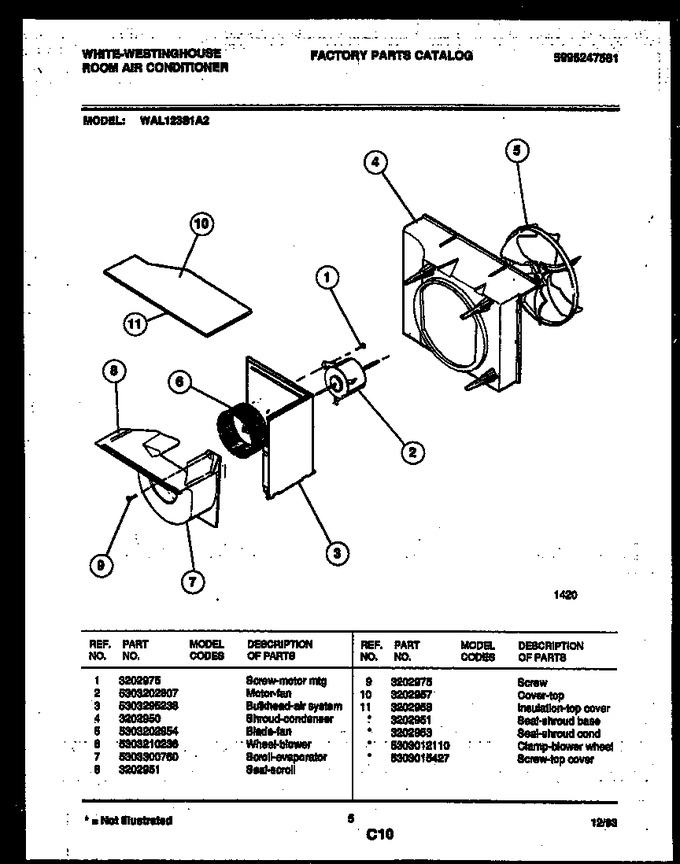

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202975 | Screw - Motor Mtg |
|
- | |||||
| 2 | 5303202807 | Motor-fan |
|
- | |||||
| 3 | 5303295238 | Bulkhead-air System |
|
- | |||||
| 4 | 3202950 | Shroud-condenser |
|
- | |||||
| 5 | 5303202954 | Blade-fan |
|
- | |||||
| 6 | 5303210236 | Wheel-blower |
|
- | |||||
| 7 | 5303300760 | Scroll-evaporator |
|
- | |||||
| 8 | 3202951 | Seal-scroll |
|
- | |||||
| 9 | 3202975 | Screw |
|
- | |||||
| 10 | 3202957 | Cover-top |
|
- | |||||
| 11 | 3202958 | Insulation-top Cover |
|
- | |||||
| *84533 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| *84533 | 5303015427 | Screw-top Cover |
|
- | |||||
| *84533 | 3202951 | Seal-shroud/base |
|
- | |||||
| *84533 | 3202953 | Seal-shroud Cond |
|
- |
