01 - Cover

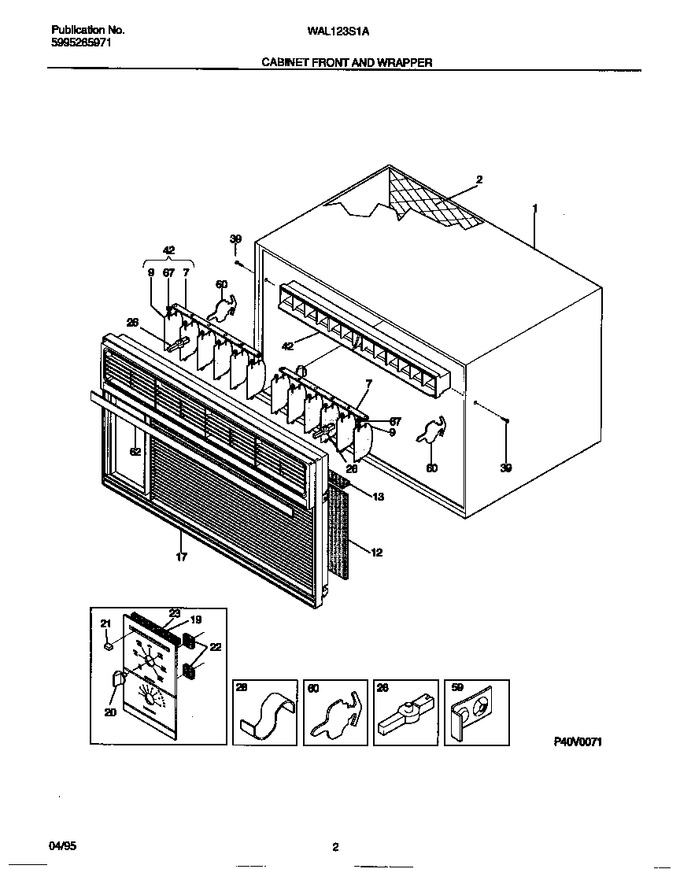

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301242 | Wrapper |
|
- | |||||
| 2 | 5303303597 | Panel-rear |
|
- | |||||
| 9 | 5303271346 | Screw-front |
|
- | |||||
| 12 | 5303001809 | Filter |
|
- | |||||
| 13 | 5308014101 | Seal-mullion |
|
- | |||||
| 17 | 5303300129 | Front Complete |
|
- | |||||
