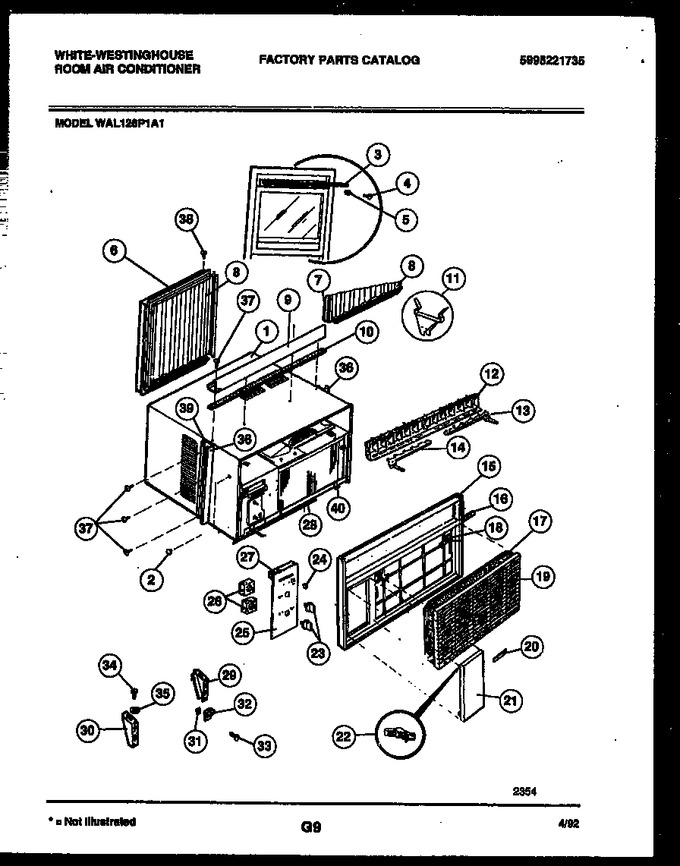

02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271901		Wrapper		Appelez-nous	-
2	5303271902		Plug Button		Appelez-nous	-
3	3002603		Gasket-window		Appelez-nous	-
4	5303211056		Bracket		Appelez-nous	-
5	3002803		Screw		Appelez-nous	-
6	3202964		Frame W/ Accordian Lh		Appelez-nous	-
7	3203060		Frame W/ Accordian Rh		Appelez-nous	-
8	5303211382		Accordian Closure		Appelez-nous	-
9	3001873		Rail, Top		Appelez-nous	-
10	5303207200		Seal-top		Appelez-nous	-
11	5303001844		Clip		Appelez-nous	-
12	5303002458		Louvers W/ Link		Appelez-nous	-
13	5303002164		Link Rh		Appelez-nous	-
14	5303002165		Link-lh		Appelez-nous	-
15	3203595		Front Complete		Appelez-nous	-
16	5300301157		Seal-mullion		Appelez-nous	-
17	5303001809		Filter		Appelez-nous	-
18	5308008175		Screw-front		Appelez-nous	-
19	5303210352		Panel-front		Appelez-nous	-
20	5300138101		Nameplate		Appelez-nous	-
21	5303201748		Door		Appelez-nous	-
22	5303017980		Hinge		Appelez-nous	-
23	5300331902		Knob Control		Appelez-nous	-
24	5303002189		Knob-slide		Appelez-nous	-
25	5303281286		Dial Plate		Appelez-nous	-
26	5303001775		Spacer		Appelez-nous	-
27	5303001984		Seal		Appelez-nous	-
28	5314949603		Seal-chassis,bottom		Appelez-nous	-
29	5303284689		Bracket-rh		Appelez-nous	-
30	5303284690		Bracket-lh		Appelez-nous	-
31	3007759		Nut (2)		Appelez-nous	-
32	3001815		Bracket (2)		Appelez-nous	-
33	3007756		Screw (2)		Appelez-nous	-
34	5303281649		Screw (4)		Appelez-nous	-
35	3017023		Nut (4)		Appelez-nous	-
36	3202966		Retainer		Appelez-nous	-
37	3015312		Screw		Appelez-nous	-
38	3002801		Screw		Appelez-nous	-
39	5303276728		Seal,retainer		Appelez-nous	-
40	5308010914		Clip-front		Appelez-nous	-
1A	5303210207		Grille (non-illustrated)		Appelez-nous	-
1B	5303271448		Nameplate-grille (non-illustrated)		Appelez-nous	-
