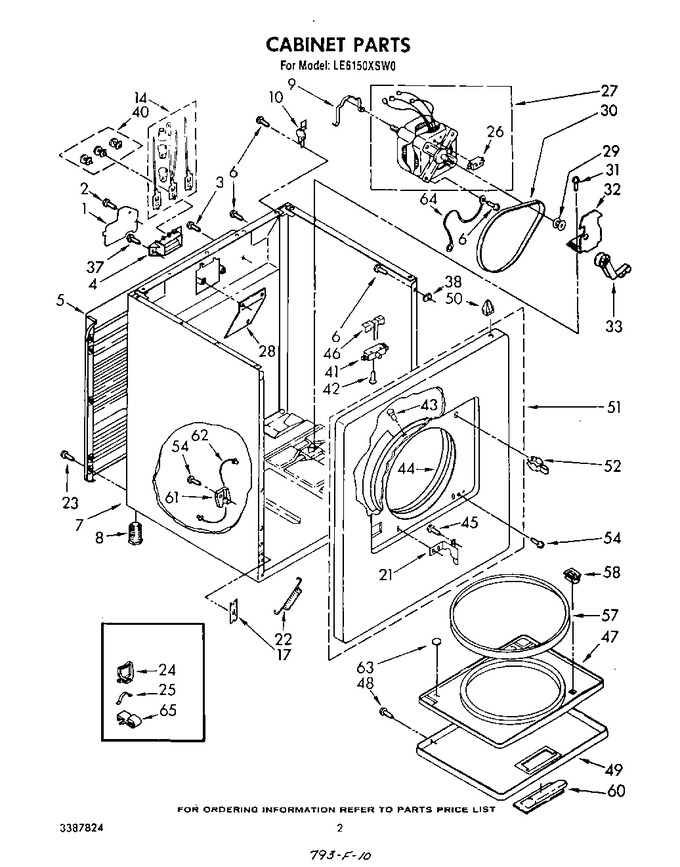

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11736322 | Cover, Terminal Block (Replaces: 690893) |
|
- | |||||
| 2 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 3 | WP681414 | Screw, 10-32 X 1/2 (external Ground) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 4 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 61.43 | ||||
| 5 | 346368 | Panel, Rear |
|
- | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 690848 | Cabinet (almond) |
|
- | |||||
| 7 | 694875 | Cabinet (platinum) |
|
- | |||||
| 7 | 694874 | Cabinet (toast) |
|
- | |||||
| 7 | 690847 | Cabinet (white) |
|
- | |||||
| 7 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 9 | WP660658 | Clamp, Motor (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 10 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 11 | 340025 | Wire, Ground |
|
- | |||||
| 14 | 279318 | Terminal, Brass & Tinned |
|
Immediately | $ 90.89 | ||||
| 17 | W10854425 | Clip (2) (Replaces: 237823) |
|
Immediately | $ 14.00 | ||||
| 21 | WP238460 | Hinge, Door (l.h.) (Replaces: 238460) |
|
$ 6.78 | |||||
| 21 | 238456 | Hinge, Door (r.h.) |
|
$ 5.33 | |||||
| 22 | WP337186 | Spring, Door (2) (Replaces: 337186) |
|
$ 7.25 | |||||
| 23 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 24 | 688412 | Clip, Harness Retainer |
|
- | |||||
| 25 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 26 | 279827 | Switch (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 27 | 279827 | Motor, 60 Hz. (Replaces: 695075) |
|
Immediately | $ 172.76 | ||||
| 28 | 690262 | Shield, Light |
|
- | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 694871) |
|
Immediately | $ 45.92 | ||||
| 30 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 16.34 | ||||
| 31 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 32 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 33 | WP691366 | Ideler & Pulley (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 37 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 9416643) |
|
Immediately | $ 7.08 | ||||
| 38 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 40 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 41 | W10820036 | Switch, Door (Replaces: 344475) |
|
Immediately | $ 27.45 | ||||
| 42 | WP98129 | Screw, 6-20 X 7/8 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 43 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 44 | 279264 | Seal & Bearing (Replaces: 349462) |
|
Immediately | $ 67.07 | ||||
| 45 | WP488627 | Screw, 8-15 X 1/2 (Replaces: 688160) |
|
$ 6.81 | |||||
| 46 | WP691581 | Lever, Door Switch (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 47 | 695953 | Door, Rear |
|
- | |||||
| 48 | WP694091 | Screw, Mounting (Replaces: 694091) |
|
$ 6.47 | |||||
| 49 | 689487 | Door, Front (golden Harvest) |
|
- | |||||
| 49 | 695166 | Door, Front (toast) |
|
- | |||||
| 49 | 695167 | Door, Front (platinum) |
|
- | |||||
| 49 | 348737 | Door, Front (white) |
|
- | |||||
| 49 | 689485 | Door, Front (almond) |
|
- | |||||
| 50 | WP18776 | Lock, Front Top (Replaces: 690363) |
|
Immediately | $ 11.41 | ||||
| 51 | 695150 | Front Panel (toast) |
|
- | |||||
| 51 | 00689527 | Front Panel (golden Harvest) (Replaces: 689527) |
|
$ 647.99 | |||||
| 51 | 689525 | Front Panel (almond) |
|
- | |||||
| 51 | 337464 | Front Panel (white) |
|
- | |||||
| 51 | 695151 | Front Panel (platinum) |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 54 | WP90767 | Screw, Hinge To Panel (4) (Replaces: 339493) |
|
Immediately | $ 7.04 | ||||
| 57 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 48.27 | |||||
| 58 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 60 | 695016 | Handle, Door (toast) |
|
- | |||||
| 60 | 695017 | Handle, Door (platinum) |
|
- | |||||
| 60 | WP348721 | Handle, Door (white) (Replaces: 690265) |
|
$ 70.10 | |||||
| 60 | 690266 | Handle, Door (almond) |
|
- | |||||
| 60 | 690269 | Handle, Door (golden Harvest) |
|
- | |||||
| 61 | 337182 | Guide, Cable (l.h) |
|
$ 5.51 | |||||
| 61 | 337183 | Guide, Cable (r.h.) |
|
$ 5.51 | |||||
| 62 | 230131 | Cable, Door (2) |
|
$ 8.41 | |||||
| 63 | WP660975 | Button, Plug (2) (Replaces: 689587) |
|
$ 6.79 | |||||
| 64 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 65 | 689180 | Clip, Harness (door Switch Leads) |
|
- |
