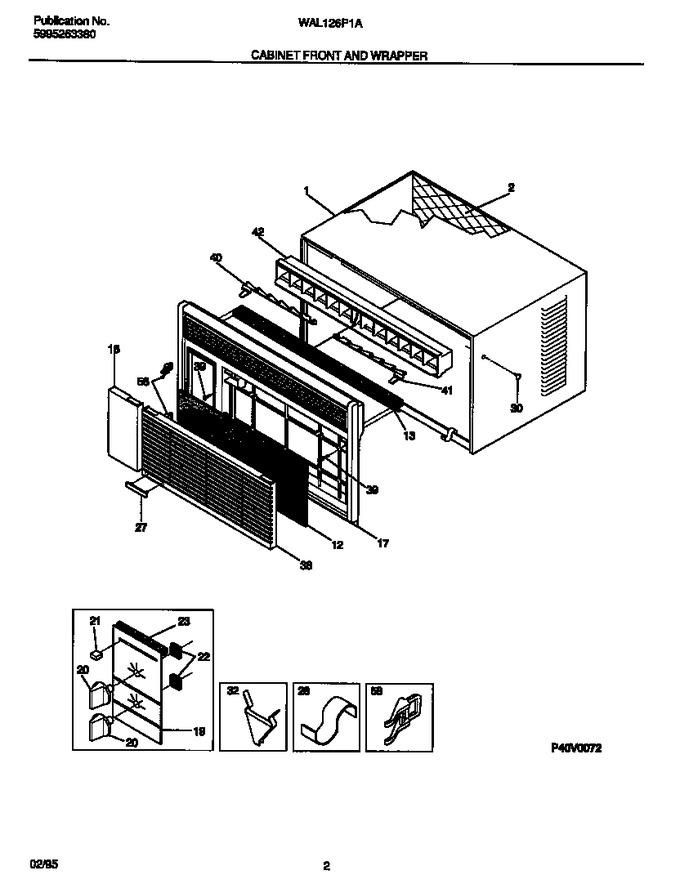

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301242 | Wrapper |
|
- | |||||
| 2 | 5303303597 | Panel-rear |
|
- | |||||
| 12 | 5303001809 | Filter |
|
- | |||||
| 13 | 5300301157 | Seal-mullion |
|
- | |||||
| 17 | 3203595 | Front Complete |
|
- | |||||
| 18 | 5303201748 | Door-front |
|
- | |||||
| 19 | 5303281286 | Dial Plate |
|
- | |||||
| 20 | 5308016109 | Knob-control |
|
- | |||||
| 21 | 5303002189 | Knob-slide |
|
- | |||||
| 22 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 23 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 27 | 5300138101 | Nameplate |
|
- | |||||
| 28 | 5308010914 | Clip-front/base |
|
- | |||||
| 30 | 08016091 | Plug |
|
- | |||||
| 32 | 5303001844 | Clip-link, (2) |
|
- | |||||
| 39 | 134178901 | Screw,front (Replaces: 5303293767) |
|
$ 14.89 | |||||
| 40 | 5303293787 | Link-louvers, Lh |
|
- | |||||
| 41 | 5303293786 | Link-louvers, Rh |
|
- | |||||
| 42 | 5303002458 | Louvers W/link, 5 |
|
- | |||||
| 58 | 5303017980 | Hinge - Door |
|
- |
