SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts

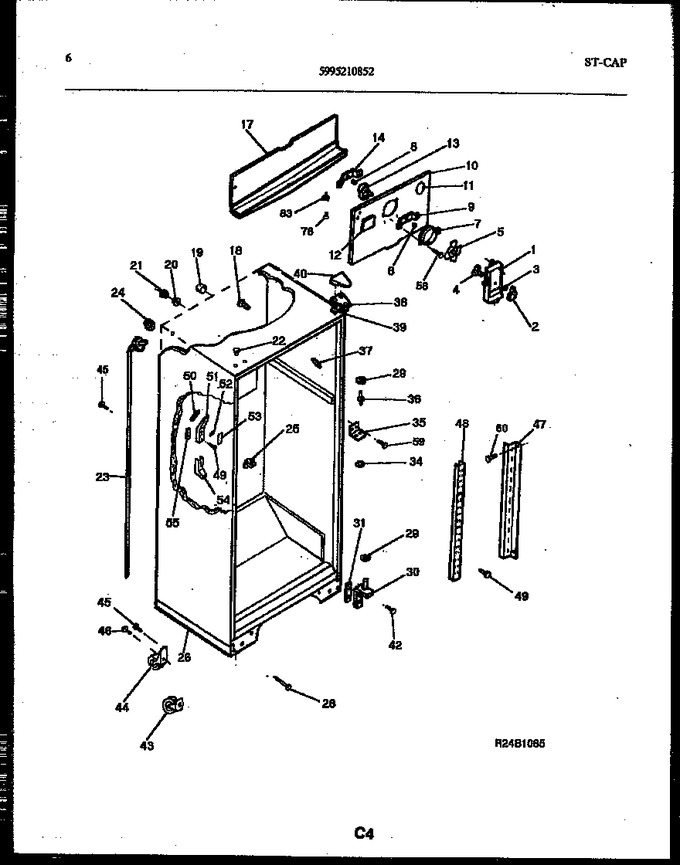

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202340		Trim, Cabinet Corner, Almond, (4)		Appelez-nous	-
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5308012933		Cover-upper Hinge, Almond		Appelez-nous	-
42	5303001320		Screw-hng/gusset Mtg, Hx Wshr Hd Mach, 1/4-20 X 5/8, (6)		Appelez-nous	-
43	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
44	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt-rolier Mtg, Hx Wshr Hd Mach, 1/4-28 X 1/2, (2)		Appelez-nous	-
47	5308000302		Channel, Shelf Mtg, Side, (2)		Appelez-nous	-
48	5303015409		Channel-shelf Mtg, Center		Appelez-nous	-
49	5308016568		Screw-chan/air Duct, Cr Pan Head, 8(a) X 1-1/2		Appelez-nous	-
50	5308009765		Insulation-air Duct, Upper		Appelez-nous	-
51	08017510		Duct-meat Keeper (upper)		Appelez-nous	-
52	5303001445		Control-damper, Meat Kpr Duct		Appelez-nous	-
53	3001446		Label-meat Kpr Duct		Appelez-nous	-
54	5303001443		Duct-meat Keeper, Lower		Appelez-nous	-
55	5308009764		Insulation-air Duct, Lower		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	5308012258		Screw				$ 2.25
60	5308010253		Screw		Appelez-nous	-
78	5303210353		Screw-connector Brkt, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
83	5308000107		Bracket-connector				$ 33.23
*56463	5308016571		Plug-button, Liner				$ 4.79
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44

    View Diagram in Separate Window       Print Part List
