New Model Search:

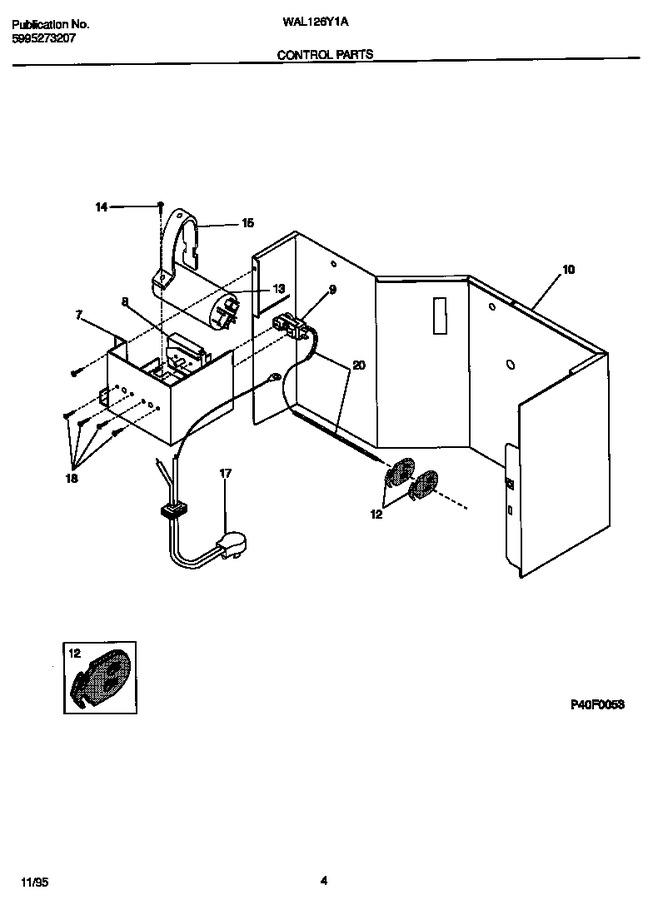

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309605601 | Box-control |
|
- | |||||
| 8 | 5303316598 | Switch-selector |
|
- | |||||
| 9 | 5303316597 | Control-temperature |
|
- | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 12 | 5303002169 | Clip-control Bulb, (2) |
|
- | |||||
| 13 | 5303316595 | Capacitor, 370 V |
|
- | |||||
| 14 | 5303015427 | Screw, Phillips, 8-18 X .47, Nib Truss Hd |
|
- | |||||
| 15 | 5303316589 | Strap-capacitor |
|
- | |||||
| 17 | 5303316618 | Cord-electric Power, 115 |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 20 | 5303002600 | Sleeve-control Tube |
|
- | |||||
| *70720 | 5303316603 | Harness |
|
- |
