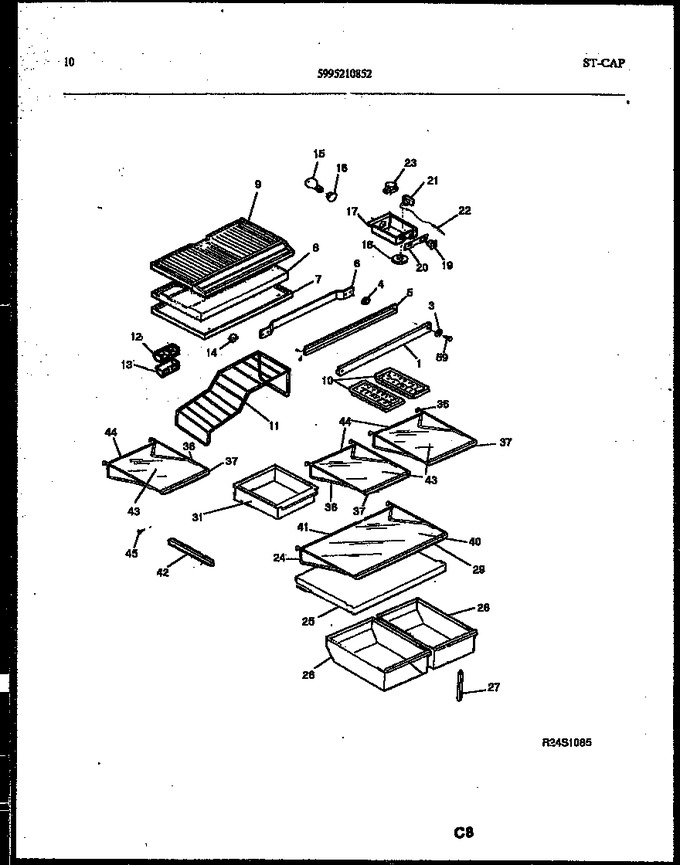

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	3001432		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5349006408		Cover-crisper Pan		Appelez-nous	-
26	5303001436		Pan-crisper, Lh		Appelez-nous	-
26	5303001437		Pan-crisper, Rh		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
29	3001435		Trim-full Shelf, Snap-on		Appelez-nous	-
31	3001440		Pan-meat		Appelez-nous	-
36	3001430		Frame-meat Kpr Shelf, Cantilever		Appelez-nous	-
36	3001423		Frame-half Shelf, Cantilever, (2)		Appelez-nous	-
37	3001426		Trim-half Shelf, Snap-on, (3)		Appelez-nous	-
40	5303279498		Shelf-glass, Full Shelf		Appelez-nous	-
41	5317243605		Trim-full Shelf, Rear		Appelez-nous	-
42	5303211237		Hanger-meat Pan, Rh		Appelez-nous	-
43	3001424		Shelf-glass, Half Shelf, (3)		Appelez-nous	-
44	3001425		Trim-half Shelf, Rear, (2)		Appelez-nous	-
44	3001427		Trim-meat Kpr Shelf, Rear		Appelez-nous	-
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
59	5308012258		Screw				$ 2.25
24A	5300170910		Clip-cantilever Shlf (non-illustrated)				$ 2.60
42A	5303211236		Hanger-meat Pan, Lh (non-illustrated)		Appelez-nous	-
