Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3201322 Backsheet Appelez-nous -
2 5303015671 Screw (4) Appelez-nous -
4 5303210371 Timer Appelez-nous -
7 08010789 Screw Appelez-nous -
8 5303292151 Panel - Control Appelez-nous -
9 5303208818 Bracket-controls Appelez-nous -
10 5303211075 Switch - Pressure Appelez-nous -
12 3205874 End Cap - L.h. Appelez-nous -
13 5308014350 Clip (8) Appelez-nous -
15 5303211076 Panel - Control Lower Appelez-nous -
17 08010782 Screw Appelez-nous -
18 3205820 Screw Appelez-nous -
20 5303161233 Screw Appelez-nous -
21 3161188 Screw Appelez-nous -
22 3205876 End Cap - R.h. Appelez-nous -
23 5308014340 Knob - Rotary Appelez-nous -
24 08014349 Ground Strap Appelez-nous -
25 5308014337 Knob - Timer Special Order $ 32.57

26 5308015498 Pointer Appelez-nous -
27 5308015493 Spacer - Timer Special Order $ 14.36

31 5303210373 Harness Appelez-nous -
32 5379171000 Terminal Appelez-nous -
33 08001689 Screw Appelez-nous -
35 5300503065 Nut Special Order $ 6.09

*59837 5303285493 Clip - Harness Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

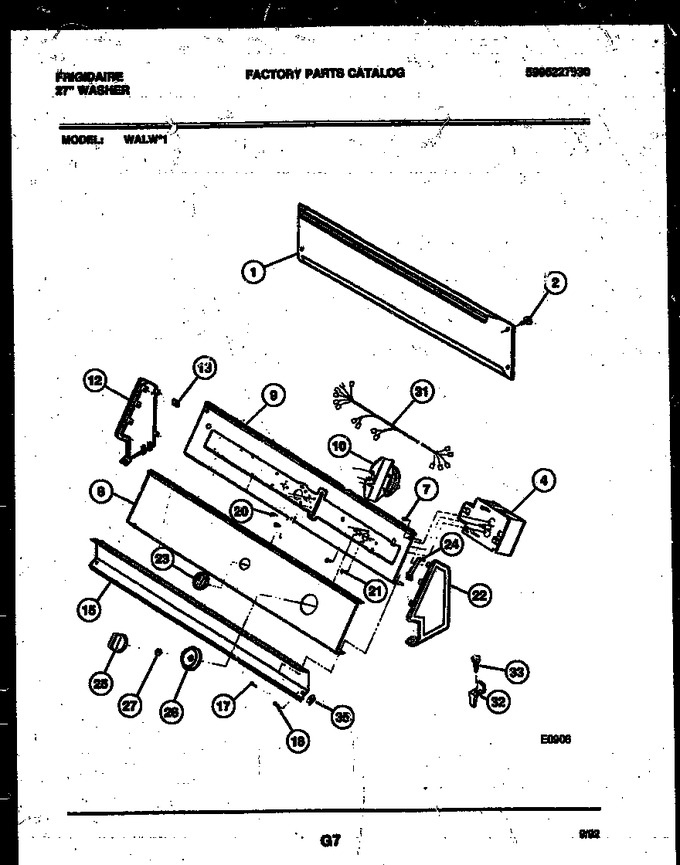

Diagram for WALW1
