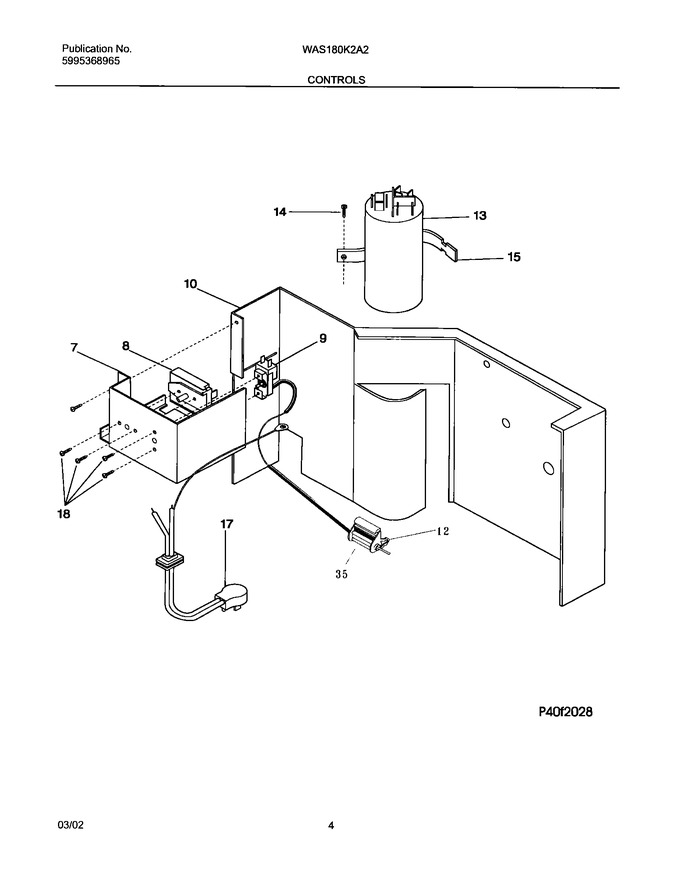

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309630401 | Control Box |
|
- | |||||
| 10 | 309623602 | Bulkhead,control System |
|
- | |||||
| 12 | 309331801 | Clip,sensor Retainer ,(2) |
|
- | |||||
| 14 | 5303285199 | Screw,ph Truss Hd ,8-18 X 0.38 ,grounding |
|
- | |||||
| 15 | 5303303077 | Strap,capacitor Mtg. |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 35 | 3200761 | Spacer,control Bulb ,rubber |
|
- | |||||
| F13 | 5304426451 | Capacitor,450 V ,35+6 Mfd |
|
- | |||||
| F17 | 309343112 | Cord-electric Power,type C ,16 Awg |
|
- | |||||
| F8 | 5303323284 | Switch,selector ,7 Posn,3 Speed |
|
- | |||||
| F9 | 5304408295 | Control,air Temperature ,20 Amp |
|
- | |||||
| NI | 309111201 | Grommet,wire Protector |
|
- | |||||
| NI | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- |
