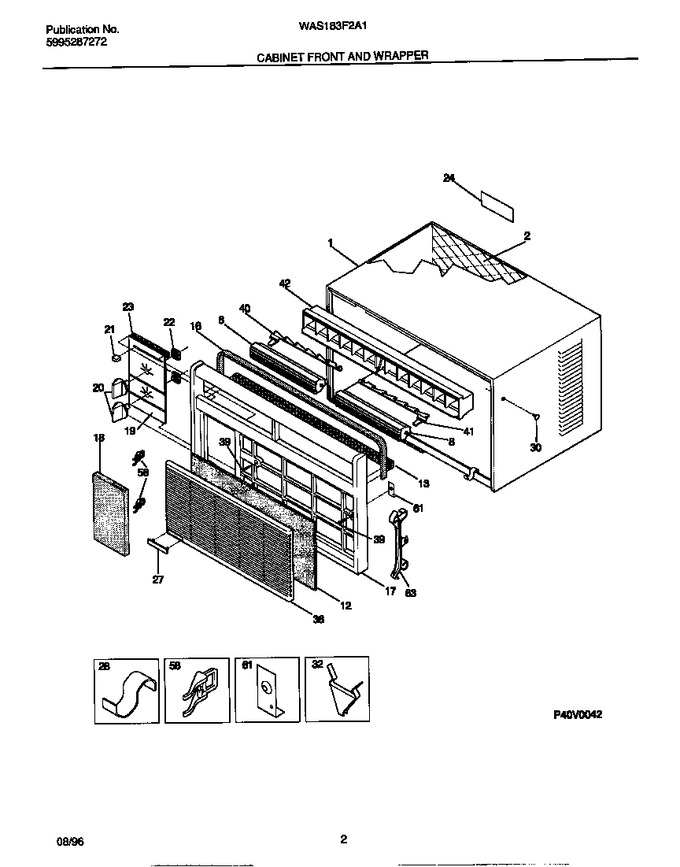

02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Grill,rear		Appelez-nous	-
8	5308017160		Louver		Appelez-nous	-
12	5303309920		Filter		Appelez-nous	-
13	08017131		Seal-mullion		Appelez-nous	-
16	08017132		Seal		Appelez-nous	-
17	309611004		Front, Cabinet, Complete		Appelez-nous	-
18	3202502		Door		Appelez-nous	-
19	309618001		Dial Plate		Appelez-nous	-
20	5300331902		Knob Control		Appelez-nous	-
21	5303002189		Button-vent Control, Sliding		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	5303001984		Seal, Plate		Appelez-nous	-
24	5300138101		Nameplate		Appelez-nous	-
27	309100803		Nameplate		Appelez-nous	-
28	5308010914		Clip-front To Base		Appelez-nous	-
30	08016091		Plug		Appelez-nous	-
32	5303001844		Clip-link, (2)		Appelez-nous	-
38	5300454403		Panel-front		Appelez-nous	-
39	134178901		Screw, Truss Head, 8-18 X 0.625, Front, (2), Square Driv   (Replaces: 5303293767)				$ 14.89
40	5303293555		Link-louver, Lh		Appelez-nous	-
41	5303293554		Link-louver, Rh		Appelez-nous	-
42	5303002459		Louvers W/ Link		Appelez-nous	-
58	5303017980		Hinge - Door		Appelez-nous	-
61	5303016223		Bracket-front		Appelez-nous	-
63	5300345801		Track-filter,2		Appelez-nous	-
*28040	5303212504		Seal-bottom		Appelez-nous	-
