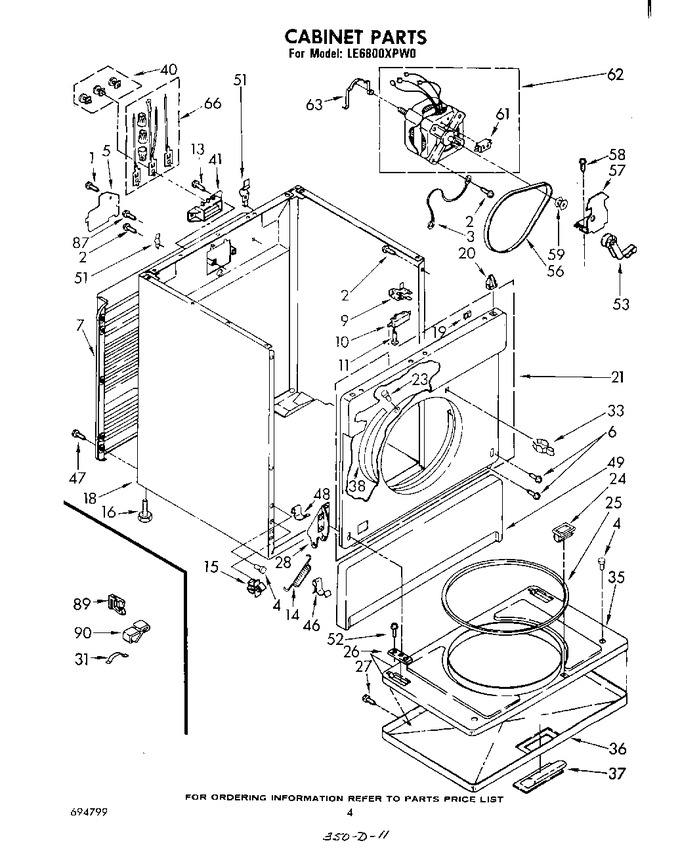

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 4 | 238614 | Bumper |
|
$ 72.68 | |||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 6 | 342043 | Screw, 10-32 X 1/2 |
|
- | |||||
| 7 | 346368 | Panel, Rear |
|
- | |||||
| 9 | WP691581 | Lever, Door (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 11 | WP98129 | Screw (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 13 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 9416643) |
|
Immediately | $ 7.08 | ||||
| 14 | 237979 | Spring, Door (2) |
|
- | |||||
| 15 | 690625 | Clip, Toe Panel |
|
- | |||||
| 16 | 49621 | Foot, Plastic (4) (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 18 | 694874 | Cabinet (toast) |
|
- | |||||
| 18 | 694875 | Cabinet (platinum) |
|
- | |||||
| 18 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 18 | 690848 | Cabinet (almond) |
|
- | |||||
| 18 | 690847 | Cabinet (white) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 688904) |
|
Immediately | $ 11.41 | ||||
| 21 | 695026 | Upper Front Panel Assembly (toast) |
|
- | |||||
| 21 | 695027 | Upper Front Panel Assembly (platinum) |
|
- | |||||
| 21 | 689535 | Upper Front Panel Assembly (golden Harvest) |
|
- | |||||
| 21 | 689533 | Upper Front Panel Assembly (almond) |
|
- | |||||
| 21 | 338012 | Upper Front Panel Assembly (white) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 25 | WP3390733 | Seal, Door (Replaces: 685762) |
|
Immediately | $ 104.38 | ||||
| 26 | W11252547 | Clip, Hinge (2) (Replaces: 337189) |
|
$ 19.25 | |||||
| 27 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 28 | 687905 | Hinge, R.h. |
|
- | |||||
| 28 | 687906 | Hinge, L.h. |
|
- | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 35 | 346370 | Door, Rear (white) |
|
- | |||||
| 35 | 695004 | Door, Rear (platinum) |
|
- | |||||
| 35 | 695003 | Door, Rear (toast) |
|
- | |||||
| 35 | 689261 | Door, Rear (golden Harvest) |
|
- | |||||
| 35 | 689258 | Door, Rear (almond) |
|
- | |||||
| 36 | 689333 | Door, Front (golden Harvest) |
|
- | |||||
| 36 | 689330 | Door, Front (almond) |
|
- | |||||
| 36 | 348728 | Door, Front (white) |
|
- | |||||
| 36 | 695035 | Door, Front (platinum) |
|
- | |||||
| 36 | 695034 | Door, Front (toast) |
|
- | |||||
| 37 | 695016 | Handle (toast) |
|
- | |||||
| 37 | 690266 | Handle (almond) |
|
- | |||||
| 37 | WP348721 | Handle (white) (Replaces: 690265) |
|
$ 70.10 | |||||
| 37 | 695017 | Handle (platinum) |
|
- | |||||
| 37 | 690269 | Handle (golden Harvest) |
|
- | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349464) |
|
Immediately | $ 67.07 | ||||
| 40 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 41 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 61.43 | ||||
| 46 | 341776 | Clip, Toe Panel Lock |
|
- | |||||
| 47 | WP489069 | Screw, Rear Panel Mounting (7) (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 48 | WP297092 | Clip, Hinge (2) (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 49 | 694999 | Panel, Toe (toast) |
|
- | |||||
| 49 | 237035 | Panel, Toe (white) |
|
- | |||||
| 49 | 695000 | Panel, Toe (platinum) |
|
- | |||||
| 49 | 689537 | Panel, Toe (almond) |
|
- | |||||
| 49 | 689539 | Panel, Toe (golden Harvest) |
|
- | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 52 | WP308685 | Screw, Hinge To Door (4) (Replaces: 98518) |
|
Immediately | $ 7.08 | ||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 56 | 341241 | Belt, Drive |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 694871) |
|
Immediately | $ 45.92 | ||||
| 61 | 279827 | Switch (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 695075) |
|
Immediately | $ 172.76 | ||||
| 63 | WP660658 | Clamp, Motor (2) (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (2) (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 66 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 40) |
|
Immediately | $ 90.89 | ||||
| 87 | WP681414 | Screw, 10-32 X 1/2 (grounding) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 89 | 688412 | Clip, Harness Retainer (rear Bulkhead Area) |
|
- | |||||
| 90 | 689180 | Clip, Harness Retainer (door Switch Leads) |
|
- |
