02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

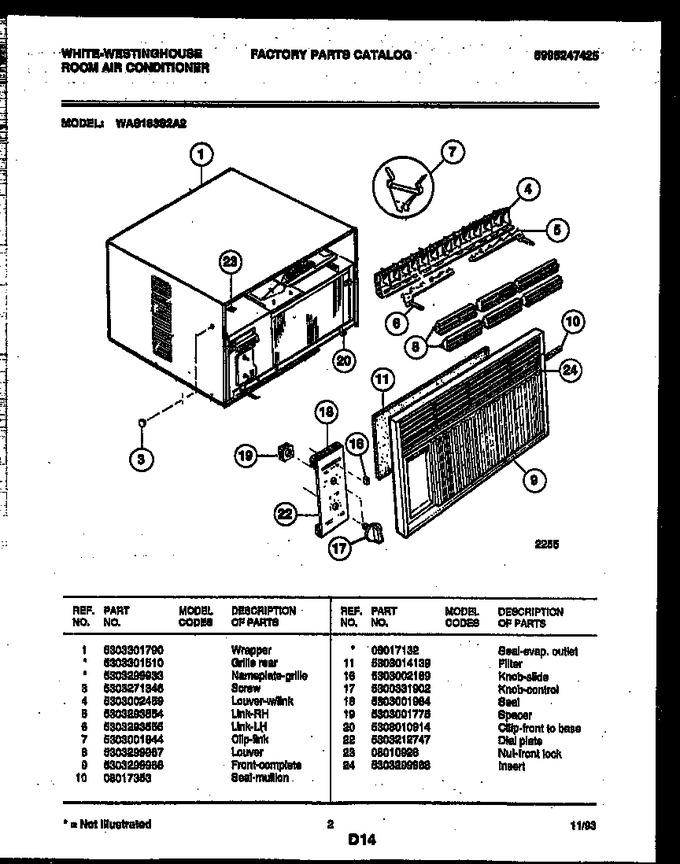

| 1 | 5303301790 | Wrapper |
|
- | |||||
| 3 | 5303271346 | Screw |
|
- | |||||
| 4 | 5303002459 | Louver W/link |
|
- | |||||
| 5 | 5303293554 | Link-rh |
|
- | |||||
| 6 | 5303293555 | Link-lh |
|
- | |||||
| 7 | 5303001844 | Clip-link |
|
- | |||||
| 8 | 5303299967 | Louver |
|
- | |||||
| 9 | 5303299966 | Front-complete |
|
- | |||||
| 10 | 08017353 | Seal - Mullion |
|
- | |||||
| 11 | 5303014139 | Filter |
|
- | |||||
| 16 | 5303002189 | Knob-slide |
|
- | |||||
| 17 | 5300331902 | Knob Control |
|
- | |||||
| 18 | 5303001984 | Seal |
|
- | |||||
| 19 | 5303001775 | Spacer |
|
- | |||||
| 20 | 5308010914 | Clip-front To Base |
|
- | |||||
| 22 | 5303212747 | Dial Plate |
|
- | |||||
| 23 | 08010928 | Nut - Front Lock |
|
- | |||||
| 24 | 5303299968 | Insert |
|
- | |||||
| 10A | 08017132 | Seal-evap Outlet (non-illustrated) |
|
- | |||||
| 1A | 5303301510 | Grille-rear (non-illustrated) |
|
- | |||||
| 1B | 5303299933 | Nameplate-grille (non-illustrated) |
|
- |
