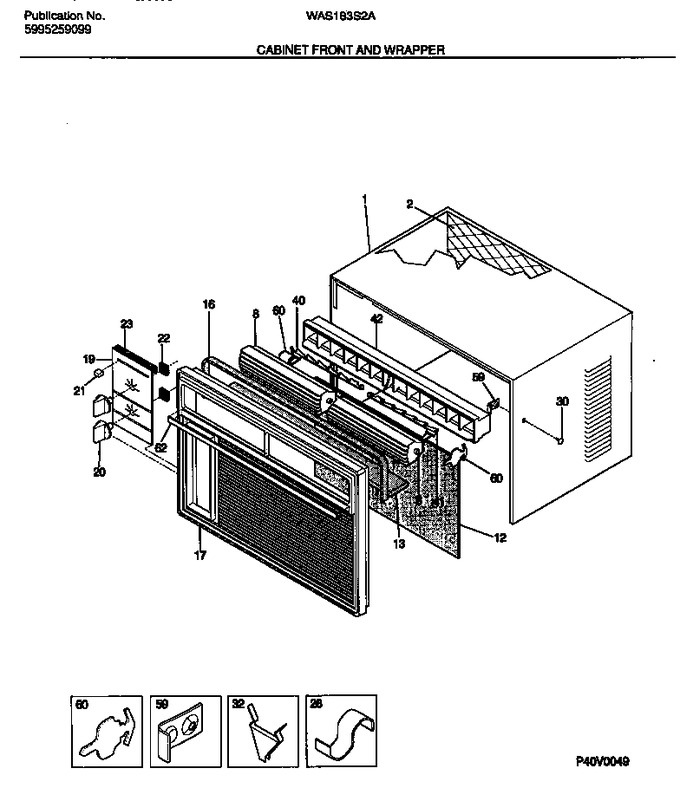

02 - Cabinet Front And Wrapper
03 - Control
04 - Air Handling
05 - Compressor
06 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303545 | Wrapper |
|
- | |||||
| 2 | 5303210207 | Panel - Rear |
|
- | |||||
| 8 | 5303299967 | Louver,(2) |
|
- | |||||
| 12 | 5303014139 | Filter |
|
- | |||||
| 13 | 08017353 | Seal - Mullion |
|
- | |||||
| 16 | 08017132 | Seal |
|
- | |||||
| 17 | 5303299966 | Front-complete |
|
- | |||||
| 19 | 5303289379 | Dial Plate |
|
- | |||||
| 20 | 5300331902 | Knob-conrol, (2) |
|
- | |||||
| 21 | 5303002189 | Knob-slide |
|
- | |||||
| 22 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 23 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 28 | 5308010914 | Clip-front/base |
|
- | |||||
| 30 | 134178901 | Screw,front (Replaces: 5303293767) |
|
$ 14.89 | |||||
| 32 | 5303001844 | Clip-link, (2) |
|
- | |||||
| 40 | 5303293555 | Link-louvers, Lh |
|
- | |||||
| 41 | 5303293554 | Link-louvers, Rh |
|
- | |||||
| 42 | 5303002459 | Louvers W/ Link |
|
- | |||||
| 59 | 08010928 | Nut - Front Lock |
|
- | |||||
| 60 | 3203495 | Clip-filter, (2) |
|
- | |||||
| 62 | 5303299968 | Insert-mullion |
|
- | |||||
| *16281 | 5303212504 | Seal - Chassis, Bottom |
|
- |
