02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - System Parts

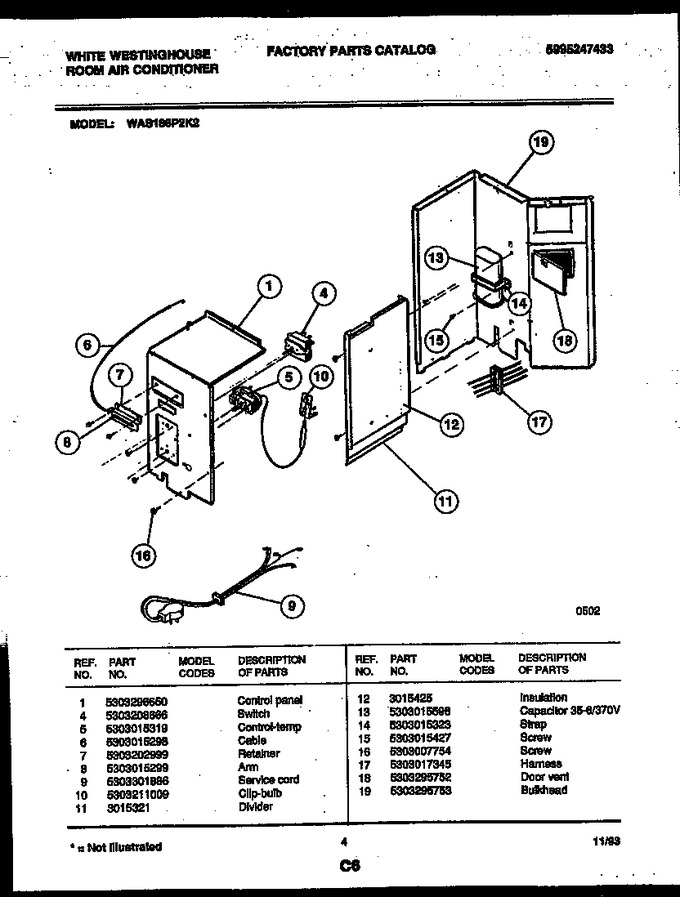

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303015293		Motor-fan		Appelez-nous	-
1	5303296650		Control Panel		Appelez-nous	-
2	3202975		Screw Motor		Appelez-nous	-
3	5303017959		Blade-fan		Appelez-nous	-
4	5303208666		Switch		Appelez-nous	-
4	5303016832		Wheel-blower		Appelez-nous	-
5	5303015319		Control Temp		Appelez-nous	-
5	5303015310		Scroll		Appelez-nous	-
6	5303015298		Cable		Appelez-nous	-
6	5303015311		Seal-shroud Bottom		Appelez-nous	-
7	5303202999		Retainer		Appelez-nous	-
7	5303015304		Shroud - Lower		Appelez-nous	-
8	5303015299		Arm		Appelez-nous	-
8	5303015305		Shroud - Upper		Appelez-nous	-
9	5303301886		Service Cord		Appelez-nous	-
9	5303015306		Bracket - Shroud		Appelez-nous	-
10	5303211009		Clip-bulb		Appelez-nous	-
10	5303015313		Cover - Top		Appelez-nous	-
11	3015321		Divider		Appelez-nous	-
11	5303015311		Seal - Housing		Appelez-nous	-
12	3015425		Insulation		Appelez-nous	-
12	5303295275		Bulkhead-air System		Appelez-nous	-
13	3015314		Insulation		Appelez-nous	-
13	5303015596		Capacitor 35-6/370v		Appelez-nous	-
14	3016696		Seal Shroud		Appelez-nous	-
14	5303015323		Strap		Appelez-nous	-
15	5303015427		Screw		Appelez-nous	-
16	5303007754		Screw		Appelez-nous	-
17	5303017345		Harness		Appelez-nous	-
18	5303295752		Door-vent		Appelez-nous	-
19	5303295753		Bulkhead		Appelez-nous	-
*82802	5303015427		Screw-top Cover		Appelez-nous	-
*82802	5303012110		Clamp-blower				$ 8.14
*82803	5308011040		Clamp - Fan Blade		Appelez-nous	-
*82803	3015312		Screw-shroud Top To Bottom		Appelez-nous	-
