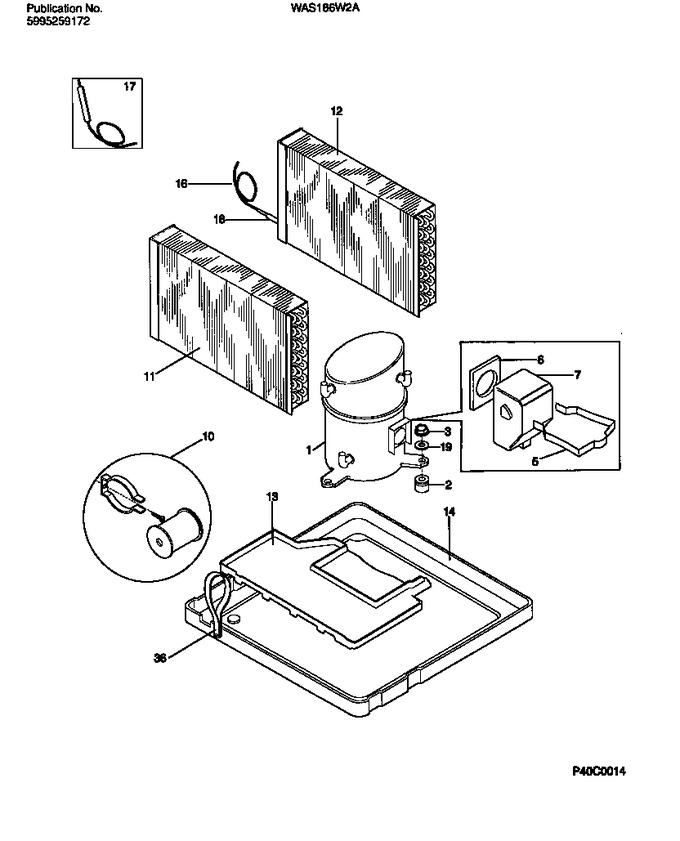

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303306716 | Compressor |
|
- | |||||
| 2 | 5303286606 | Grommet - Compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut - Compressor |
|
- | |||||
| 5 | 5303002069 | Clamp - Cover |
|
- | |||||
| 6 | 5303002068 | Gasket - Cover |
|
- | |||||
| 7 | 5303002067 | Cover, Terminal |
|
- | |||||
| 10 | 5303201723 | Start Kit |
|
- | |||||
| 11 | 5303306711 | Evaporator |
|
- | |||||
| 12 | 5303306719 | Condenser |
|
$ 574.61 | |||||
| 13 | 5303300045 | Tray - Evaporator |
|
- | |||||
| 14 | 5303302822 | Base |
|
- | |||||
| 16 | 5303209547 | Capillary Tube, Cut To 30`` |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 18 | 5303290357 | Strainer |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 36 | 5303303558 | Strap - Base |
|
- |
