Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303311048 Fan Blade,with Clamp Appelez-nous -
2 3202975 Screw`10-16 X 0.72 ,square Drive Appelez-nous -
3 5303015305 Housing-fan, Upper Appelez-nous -
4 3016696 Seal,housing-fan ,upper Appelez-nous -
5 5303015311 Seal,housing-fan ,lower Appelez-nous -
6 5303015304 Housing-fan,lower Appelez-nous -
7 3015312 Screw, 8-18 X 0.47 Appelez-nous -
8 5303015293 Motor-fan Appelez-nous -
9 5303015306 Bracket Appelez-nous -
10 5303295275 Partition - Air System Appelez-nous -
11 5303016832 Blower Wheel Appelez-nous -
11 5304404774 Blower Wheel,with Clamp Special Order $ 130.94

13 5303015313 Cover - Top Appelez-nous -
14 3015314 Insulation - Top Cover Appelez-nous -
15 5303302723 Scroll Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

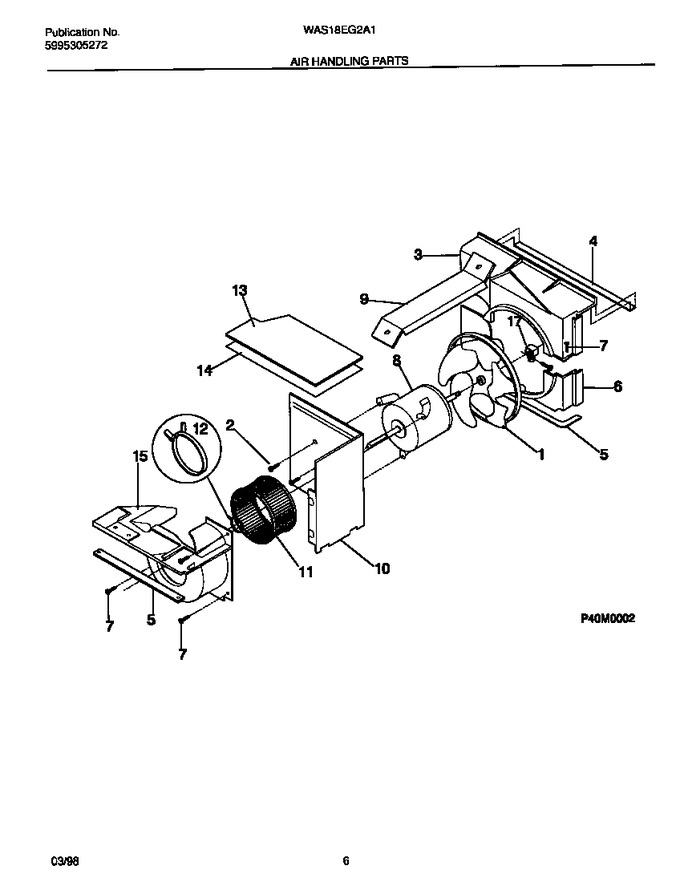

Diagram for WAS18EG2A1
