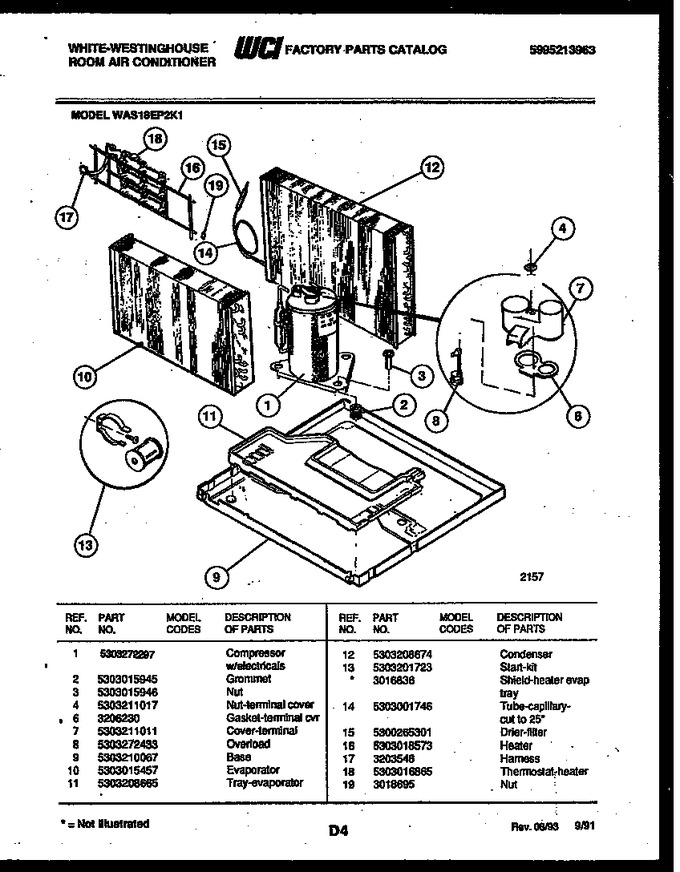

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272297 | Compressor W/ Electricals |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 6 | 3206230 | Gasket-terminal Cvr |
|
- | |||||
| 7 | 5303211011 | Cover-terminal |
|
- | |||||
| 8 | 5303272433 | Overload |
|
- | |||||
| 9 | 5303210067 | Base |
|
- | |||||
| 10 | 5303015457 | Evaporator |
|
- | |||||
| 11 | 5303208665 | Tray-evaporator |
|
- | |||||
| 12 | 5303208674 | Condenser |
|
- | |||||
| 13 | 5303201723 | Start Kit |
|
- | |||||
| 14 | 5303001746 | Tube-capillary-cut To 25`` |
|
- | |||||
| 15 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 16 | 5303018573 | Heater |
|
- | |||||
| 17 | 3203548 | Harness |
|
- | |||||
| 18 | 5303016865 | Thermostat-heater |
|
- | |||||
| 19 | 3018695 | Nut |
|
- | |||||
| 13A | 3016836 | Shield-heater Evap Tray (non-illustrated) |
|
- |
