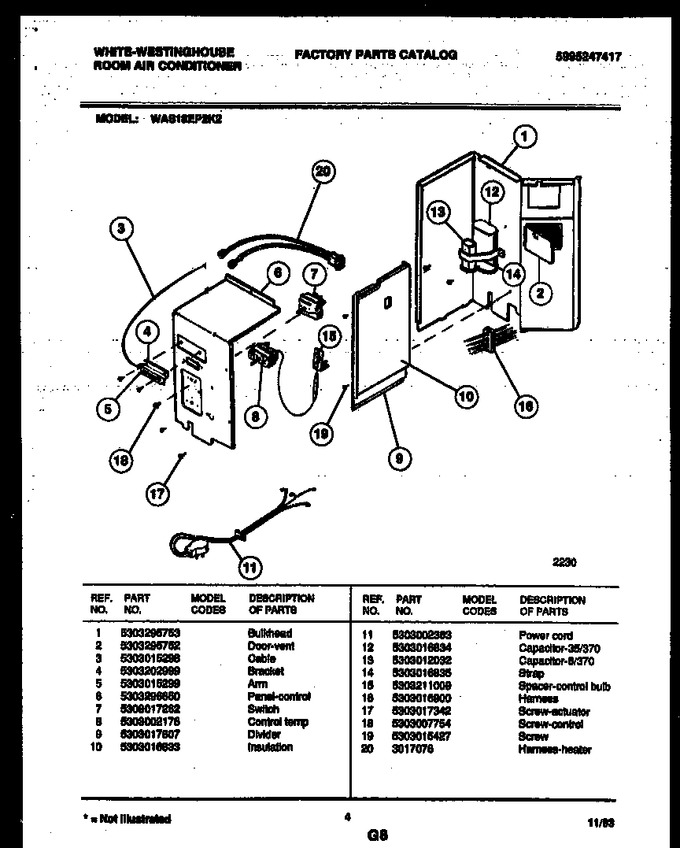

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303295753 | Bulkhead |
|
- | |||||
| 2 | 5303295752 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable |
|
- | |||||
| 4 | 5303202999 | Bracket |
|
- | |||||
| 5 | 5303015299 | Arm |
|
- | |||||
| 6 | 5303296650 | Panel-control |
|
- | |||||
| 7 | 5308017262 | Switch |
|
- | |||||
| 8 | 5303002176 | Control Temp |
|
- | |||||
| 9 | 5303017807 | Divider |
|
- | |||||
| 10 | 5303016833 | Insulation |
|
- | |||||
| 11 | 5303002363 | Power Cord |
|
- | |||||
| 12 | 5303016834 | Capacitor-35/370 |
|
- | |||||
| 13 | 5303012032 | Capacitor-6/370 |
|
- | |||||
| 14 | 5303016835 | Strap |
|
- | |||||
| 15 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 16 | 5303016900 | Harness |
|
- | |||||
| 17 | 5303017342 | Screw-actuator |
|
- | |||||
| 18 | 5303007754 | Screw-control |
|
- | |||||
| 19 | 5303015427 | Screw |
|
- | |||||
| 20 | 3017076 | Harness-heater |
|
- |
