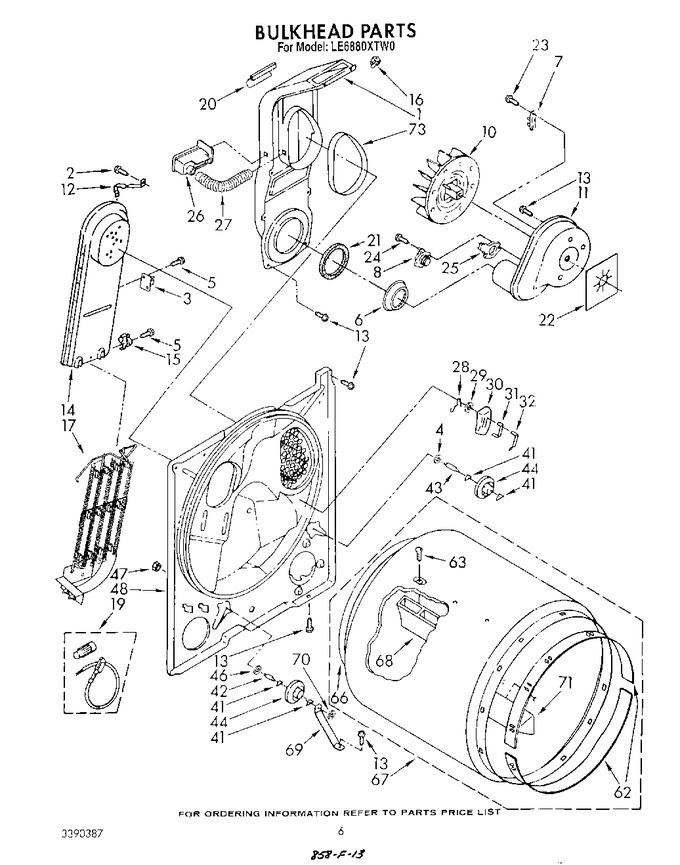

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 686214 | Lint Chute Assembly |
|
- | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 3 | 279769 | Thermal, Cut-off (hi-limit Thermostat Illus. No.15 Included) (Replaces: 3389946) |
|
Immediately | $ 56.57 | ||||
| 4 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 6.72 | |||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 20.06 | |||||
| 7 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 8 | AT022 | Thermostat, Operating 150~f (65.6~c) (Replaces: 660039) |
|
Immediately | $ 31.65 | ||||
| 8 | WP694674 | Thermostat, Operating 150~f (66~c) (alt.) (Replaces: 341146) |
|
Immediately | $ 45.46 | ||||
| 10 | WP694089 | Wheel, Blower (includes Illus. No. 22) (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 12.90 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 14 | 695547 | Box, Heater |
|
- | |||||
| 15 | WP3390291 | Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
Immediately | $ 85.45 | ||||
| 16 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 17 | WP4391960 | Element, Heater (alt.) (Replaces: 693298) |
|
Immediately | $ 54.50 | ||||
| 17 | WP4391960 | Element, Heater (Replaces: 660982) |
|
Immediately | $ 54.50 | ||||
| 17 | WP4391960 | Element, Heater (alt.) (Replaces: 693300) |
|
Immediately | $ 54.50 | ||||
| 17 | WP4391960 | Element, Heater (alt.) (Replaces: 693062) |
|
Immediately | $ 54.50 | ||||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 20 | 686770 | Support Protector |
|
- | |||||
| 21 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 16.41 | ||||
| 22 | 3392123 | Seal, Blower |
|
- | |||||
| 23 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 9.65 | ||||
| 24 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.01 | ||||
| 25 | 61894 | Heater, Thermostat |
|
$ 37.38 | |||||
| 26 | 690981 | Alert, Lint |
|
- | |||||
| 27 | 686577 | Hose, Differential |
|
- | |||||
| 28 | WP342267 | Clip, Sensor (Replaces: 342267) |
|
$ 6.98 | |||||
| 29 | WP298877 | Washer, Insulating (Replaces: 298877) |
|
$ 20.32 | |||||
| 30 | 279366 | Pad, Sensor (Replaces: 348861) |
|
$ 86.27 | |||||
| 31 | WP348859 | Electrode, Inside (Replaces: 348859) |
|
$ 7.18 | |||||
| 32 | WP348860 | Electrode, Outside (Replaces: 348860) |
|
$ 7.25 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 65.44 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 42.57 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 26.58 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.47 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685823 | Bulkhead |
|
- | |||||
| 62 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 59.60 | ||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 279408 | Seal, Rear Drum (Replaces: 347885) |
|
$ 66.22 | |||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 321.89 | |||||
| 68 | WP692490 | Baffle, Drum (2) (Replaces: 692490) |
|
$ 143.34 | |||||
| 69 | W11684613 | Bracket, Support (Replaces: 348944) |
|
$ 18.85 | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.07 | |||||
| 71 | WP3403636 | Baffle, Drum (1) (Replaces: 692491) |
|
$ 124.79 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 7.77 |
