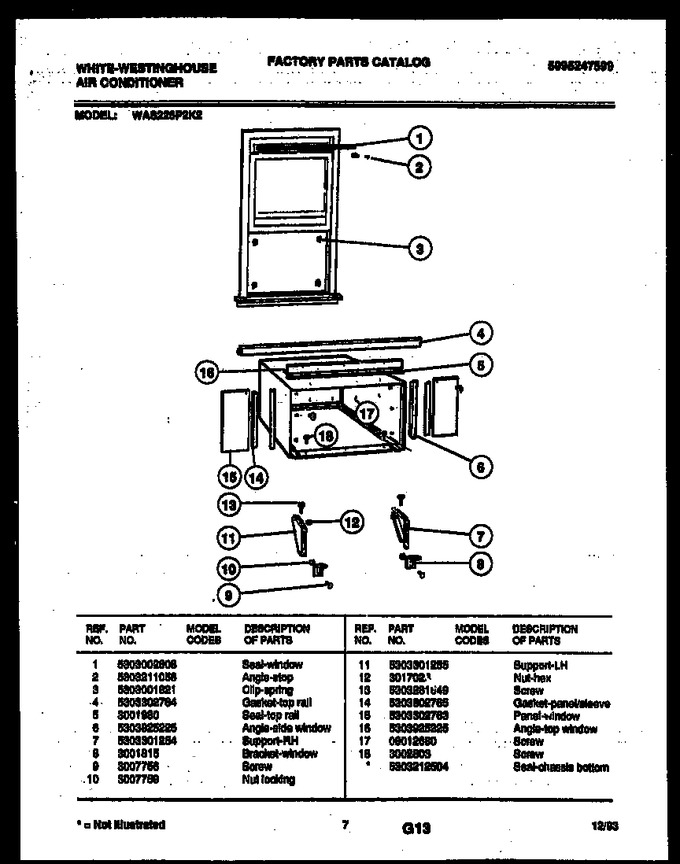

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002608 | Seal - Window |
|
- | |||||
| 2 | 5303211056 | Angle-stop |
|
- | |||||
| 3 | 5303001821 | Clip-spring |
|
- | |||||
| 4 | 5303302764 | Gasket-top Rail |
|
- | |||||
| 5 | 3001980 | Seal - Top Rail |
|
- | |||||
| 6 | 5303925225 | Angle-side Window |
|
- | |||||
| 7 | 5303301254 | Support, Rh |
|
- | |||||
| 8 | 3001815 | Bracket - Window |
|
- | |||||
| 9 | 3007756 | Screw |
|
- | |||||
| 10 | 3007759 | Nut Locking |
|
- | |||||
| 11 | 5303301255 | Support, Lh |
|
- | |||||
| 12 | 3017023 | Nut, Hex |
|
- | |||||
| 13 | 5303281649 | Screw |
|
- | |||||
| 14 | 5303302765 | Gasket-panel/sleeve |
|
- | |||||
| 15 | 5303302763 | Panel-window |
|
- | |||||
| 16 | 5303925225 | Angle-top Window |
|
- | |||||
| 17 | 08012680 | Screw |
|
- | |||||
| 18 | 3002803 | Screw |
|
- | |||||
| *84165 | 5303212504 | Seal - Chassis, Bottom |
|
- |
