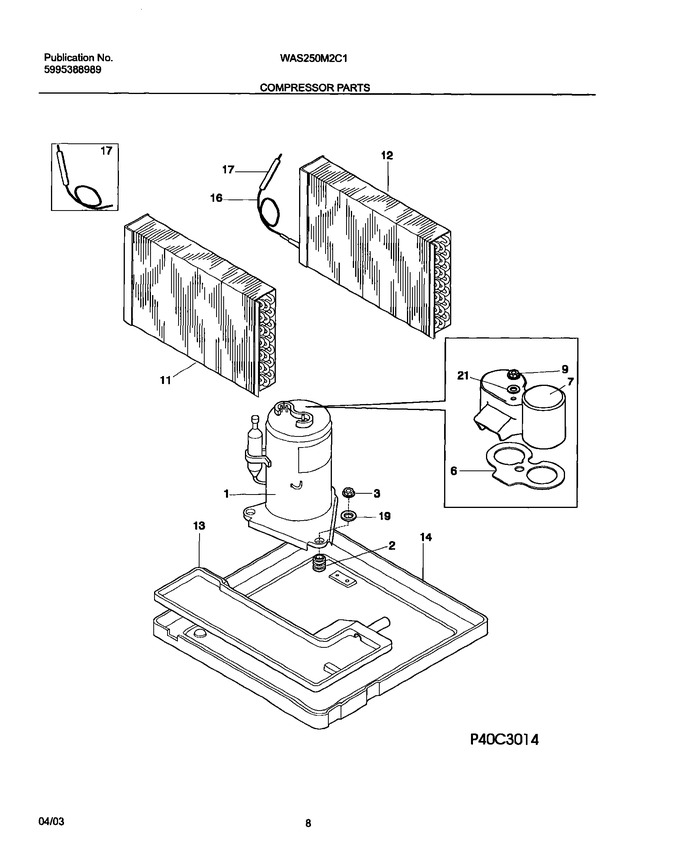

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309603118 | Compressor,w/overload |
|
- | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5304431275 | Gasket,terminal Cover |
|
- | |||||
| 7 | 5304416126 | Cover,elec Terminal ,compressor |
|
- | |||||
| 9 | 5303294292 | Nut-terminal Cover |
|
- | |||||
| 13 | 309623501 | Tray,evap Drip |
|
- | |||||
| 14 | 309632915 | Base,compressor Mtg ,with Studs |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| 21 | 5303293809 | Washer,terminal Cover |
|
- | |||||
| F11 | 309634203 | Evaporator |
|
- | |||||
| F12 | 5303306719 | Condenser |
|
$ 574.61 | |||||
| F16 | 5304426870 | Capillary Tube,37.50 Inch Long |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| NI | 5304414095 | Thermistor,defrost Sensor |
|
- |
