02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

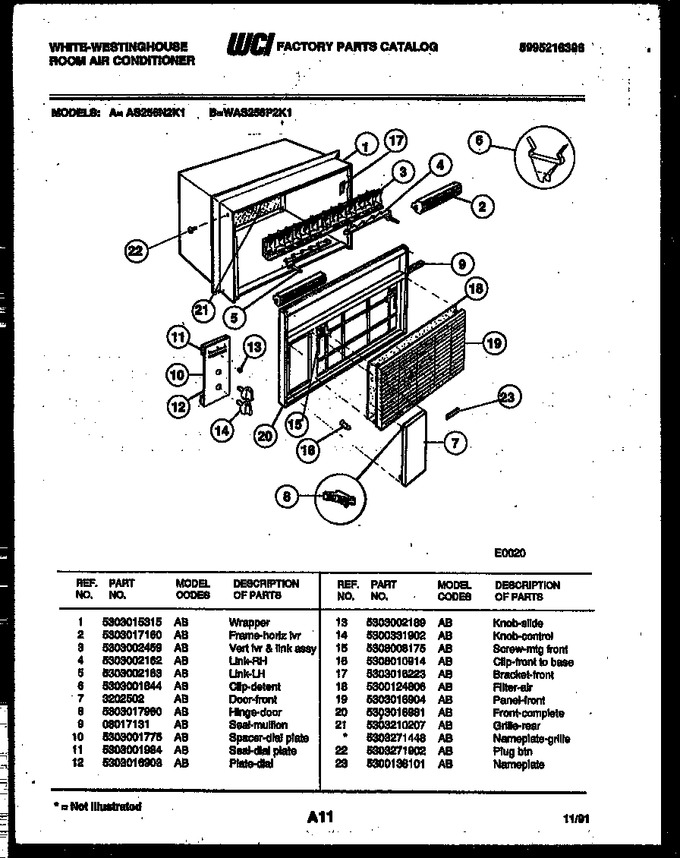

| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303017160 | Frame-horiz Lvr |
|
- | |||||
| 3 | 5303002459 | Vert Lvr & Link Assy |
|
- | |||||
| 4 | 5303002162 | Link-rh |
|
- | |||||
| 5 | 5303002163 | Link-lh |
|
- | |||||
| 6 | 5303001844 | Clip-detent |
|
- | |||||
| 7 | 3202502 | Door-front |
|
- | |||||
| 8 | 5303017980 | Hinge - Door |
|
- | |||||
| 9 | 08017131 | Seal-mullion |
|
- | |||||
| 10 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 11 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 12 | 5303016903 | Plate-dial |
|
- | |||||
| 13 | 5303002189 | Knob-slide |
|
- | |||||
| 14 | 5300331902 | Knob Control |
|
- | |||||
| 15 | 5308008175 | Screw-mtg Front |
|
- | |||||
| 16 | 5308010914 | Clip-front To Base |
|
- | |||||
| 17 | 5303016223 | Bracket-front |
|
- | |||||
| 18 | 5300124806 | Filter-air |
|
- | |||||
| 19 | 5303016904 | Panel-front |
|
- | |||||
| 20 | 5303016981 | Front-complete |
|
- | |||||
| 21 | 5303210207 | Grille-rear |
|
- | |||||
| 22 | 5303271902 | Plug Btn |
|
- | |||||
| 23 | 5300138101 | Nameplate |
|
- | |||||
| 21A | 5303271448 | Nameplate-grille (non-illustrated) |
|
- |
