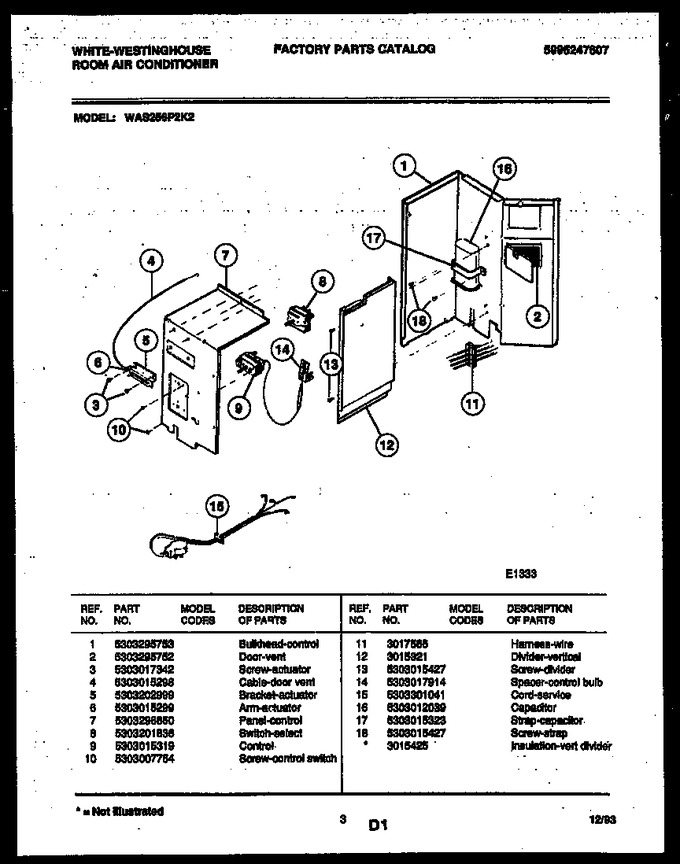

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303295753 | Bulkhead-control |
|
- | |||||
| 2 | 5303295752 | Door-vent |
|
- | |||||
| 3 | 5303017342 | Screw-actuator |
|
- | |||||
| 4 | 5303015298 | Cable-door Vent |
|
- | |||||
| 5 | 5303202999 | Bracket-actuator |
|
- | |||||
| 6 | 5303015299 | Arm - Actuator |
|
- | |||||
| 7 | 5303296650 | Panel-control |
|
- | |||||
| 8 | 5303201836 | Switch-select |
|
- | |||||
| 9 | 5303015319 | Control |
|
- | |||||
| 10 | 5303007754 | Screw-control Switch |
|
- | |||||
| 11 | 3017565 | Harness-wire |
|
- | |||||
| 12 | 3015321 | Divider - Vertical |
|
- | |||||
| 13 | 5303015427 | Screw - Divider |
|
- | |||||
| 14 | 5303017914 | Spacer-control Bulb |
|
- | |||||
| 15 | 5303301041 | Cord-service |
|
- | |||||
| 16 | 5303012039 | Capacitor |
|
- | |||||
| 17 | 5303015323 | Strap-capacitor |
|
- | |||||
| 18 | 5303015427 | Screw-strap |
|
- | |||||
| *84595 | 3015425 | Insulation-vert. Divider |
|
- |
