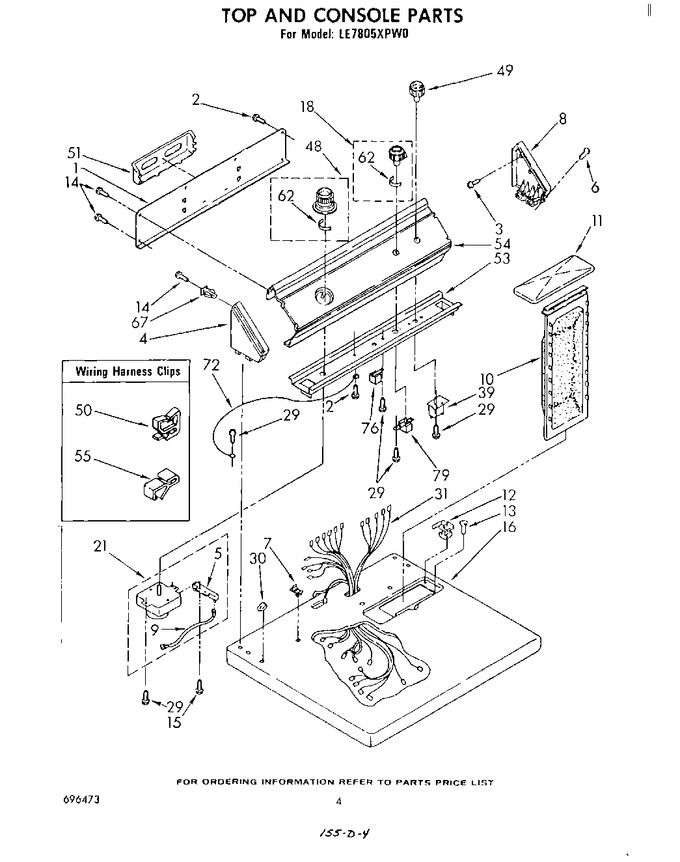

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	279872		Resistor, Timer   (Replaces: 61806)				$ 67.45
6	WP388326		Screw, End Cap (2)   (Replaces: 64211)				$ 7.30
7	358472		Stop, Push-in		Appelez-nous	-
8	63795		Cap, End. (r.h.)				$ 14.10
9	695761		Wire, Jumper		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 33.49
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	695022		Cover, Lint Screen (toast)		Appelez-nous	-
11	689313		Cover, Lint Screen (golden Harvest)		Appelez-nous	-
11	695023		Cover, Lint Screen (platinum)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	WP489069		Screw, Hex Washer Head   (Replaces: 693994)			Immediately	$ 7.07
15	WP273556		Screw, 10-16 X 5/8 (resistor To Timer)   (Replaces: 98610)			Immediately	$ 7.04
16	695510		Top (toast)		Appelez-nous	-
16	695507		Top (white)		Appelez-nous	-
16	695508		Top (almond)		Appelez-nous	-
16	695509		Top (golden Harvest)		Appelez-nous	-
16	695511		Top (platinum)		Appelez-nous	-
18	386629		Control Knob, Temperature Selector		Appelez-nous	-
21	695755		Timer & Resistor, 60 Hz.		Appelez-nous	-
29	WP3390631		Screw, Mounting   (Replaces: 339554)				$ 7.04
30	358473		Nut, Push-in (2)				$ 5.84
31	695646		Harness, Wiring		Appelez-nous	-
39	348314		Relay, Push-to-start		Appelez-nous	-
48	695554		Timer Knob Assembly		Appelez-nous	-
49	695946		Knob, Push To Start		Appelez-nous	-
50	688412		Clip, Harness Retainer (rear Of Bulkhead)		Appelez-nous	-
51	63020		Rack, Literature				$ 30.32
53	386627		Bracket, Control		Appelez-nous	-
54	695956		Panel, Control		Appelez-nous	-
55	689180		Cip, Harness Retainer (door Switch Leads)		Appelez-nous	-
62	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Nut, Push-on (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
76	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
79	695091		Switch, Fabric Temperature Selector		Appelez-nous	-
