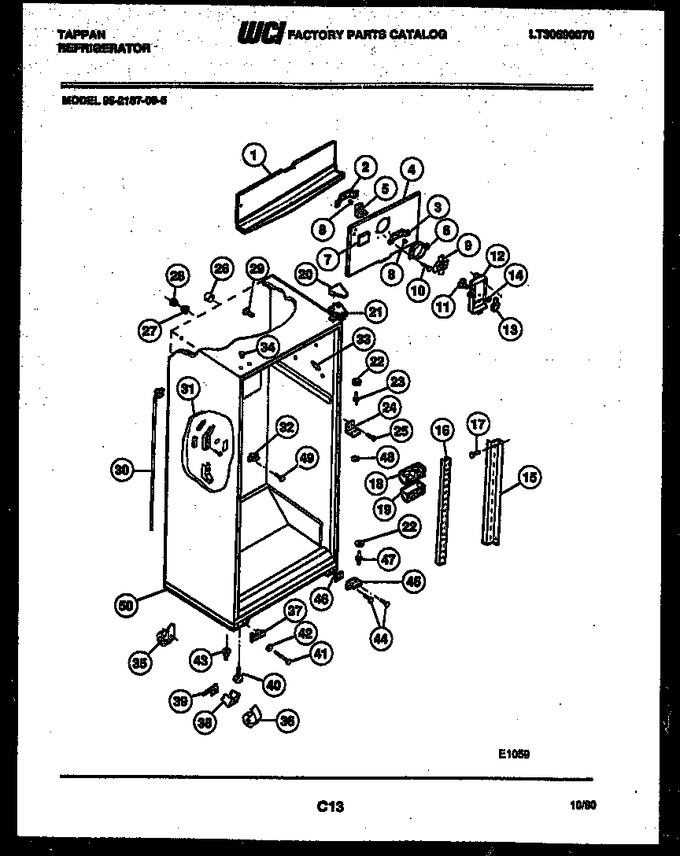

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001470		Trough-drain		Appelez-nous	-
2	5303205119		Bracket-fan Mtr- Rear		Appelez-nous	-
3	5303001226		Bracket-fan Mtr (frnt)		Appelez-nous	-
4	5308013665		Coil Cover		Appelez-nous	-
5	5300158289		Motor			Immediately	$ 149.94
6	5308000124		Ring-fan Orifice				$ 53.58
7	3001328		Decorative Plug		Appelez-nous	-
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5308000010		Blade Fan			Immediately	$ 49.03
10	218843801		Screw   (Replaces: 5303001001)				$ 14.41
11	5303001331		Damper				$ 31.71
12	3001451		Cover-fan		Appelez-nous	-
13	3001452		Knob-damper		Appelez-nous	-
14	5303001028		Nut, Push		Appelez-nous	-
15	5308000302		Channel-shelf Mtg (2)		Appelez-nous	-
16	5303015409		Center Channel		Appelez-nous	-
17	5308010253		Screw-channel Mounting (6)		Appelez-nous	-
18	5308014667		Air Deflector		Appelez-nous	-
19	5303001448		Cover-air Deflector		Appelez-nous	-
20	5303001665		Cover-top Hinge-wheat		Appelez-nous	-
20	5308012933		Cover-top Hinge-almd		Appelez-nous	-
20	5308012820		Cover-top Hinge-white		Appelez-nous	-
20	5303001664		Cover-top Hinge-avoc		Appelez-nous	-
20	5303001666		Cover-top Hinge-coffee		Appelez-nous	-
21	5308012843		Bracket-upper Hinge				$ 71.47
22	5308000007		Washer, Nylon (2)		Appelez-nous	-
23	5308000184		Center Pin				$ 8.87
24	5303001369		Hinge-center		Appelez-nous	-
25	5308012258		Screw				$ 2.25
26	5303001198		Tube-rubber		Appelez-nous	-
27	5303001286		Ferrule-inner		Appelez-nous	-
28	5303001287		Ferrule-outer		Appelez-nous	-
29	5308000097		Support-coil Cover		Appelez-nous	-
30	5303210377		Tube Drain & Seal Ring				$ 109.31
31	5303001443		Duct-meat Keeper, Lower		Appelez-nous	-
32	5308000056		Spout Drain				$ 11.66
33	5303202336		Trim-cabinet Corner, White		Appelez-nous	-
33	5303202340		Trim-cab Corner-almd		Appelez-nous	-
33	5303202339		Trim-cabinet Corner-coffee		Appelez-nous	-
33	5303202338		Trim-cabinet Corner-wheat		Appelez-nous	-
33	5303202337		Trim-cabinet Corner-avocado		Appelez-nous	-
34	5303001679		Button-plug-coffee (2)		Appelez-nous	-
34	5303001389		Button-plug-almd (2)		Appelez-nous	-
34	5303001388		Button-plug-white (2)				$ 2.60
34	5303001677		Button-plug-avoc (2)		Appelez-nous	-
34	5303001678		Button-plug-wheat (2)		Appelez-nous	-
35	5308009773		Roller Assy-rear		Appelez-nous	-
36	5308009760		Roller Assy-front		Appelez-nous	-
37	5303001478		Plug-button		Appelez-nous	-
38	5308013678		Support-base Cabinet		Appelez-nous	-
39	5308009790		Spring Roller				$ 4.30
40	5303205540		Screw, Leveling (2)		Appelez-nous	-
41	5303001403		Bolt-1/4-20 (roller Adj) (2)		Appelez-nous	-
42	5308011326		Washer-nylon				$ 9.87
43	5308003584		Anchor Nut (2)				$ 7.30
44	5303001320		Screw-lower Hinge (2)		Appelez-nous	-
45	5303202834		Bracket-hinge (lower)				$ 89.41
46	5303001323		Shim		Appelez-nous	-
47	5303001321		Pin-hinge				$ 17.25
48	5308000186		Washer, Nylon			Immediately	$ 6.02
49	5303001361		Push Pin		Appelez-nous	-
50	5308010092		Base, Cabinet		Appelez-nous	-
18A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
21A	5303001037		Shim (non-illustrated)				$ 12.39
25A	5303001323		Shim (non-illustrated)		Appelez-nous	-
30A	5303207353		Seal-ring (non-illustrated)				$ 6.81
31A	5308009764		Insulation-meat Keeper Duct-lwr		Appelez-nous	-
31B	5303001445		Damper-meat Keeper Duct		Appelez-nous	-
31C	3001446		Label-meat Keeper		Appelez-nous	-
31D	08017510		Duct-meat Keeper (upper)		Appelez-nous	-
31E	5308009765		Insulation-meat Keeper Duct-upper		Appelez-nous	-
39A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
39B	5308009762		Bolt-1/4-20 (roller Adj) (2) (non-illustrated)		Appelez-nous	-
3A	5308000107		Bracket-connector (non-illustrated)				$ 33.23
48A	5308012296		Tapping Plate (non-illustrated)				$ 47.44
48B	5303200590		Extension & Insulation Air Deflector (non-illustrated)		Appelez-nous	-
4A	5303209814		Nut-``u`` Type (non-illustrated)		Appelez-nous	-
4B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
6A	5303208309		Plug-short Test Hole (non-illustrated)				$ 45.50
