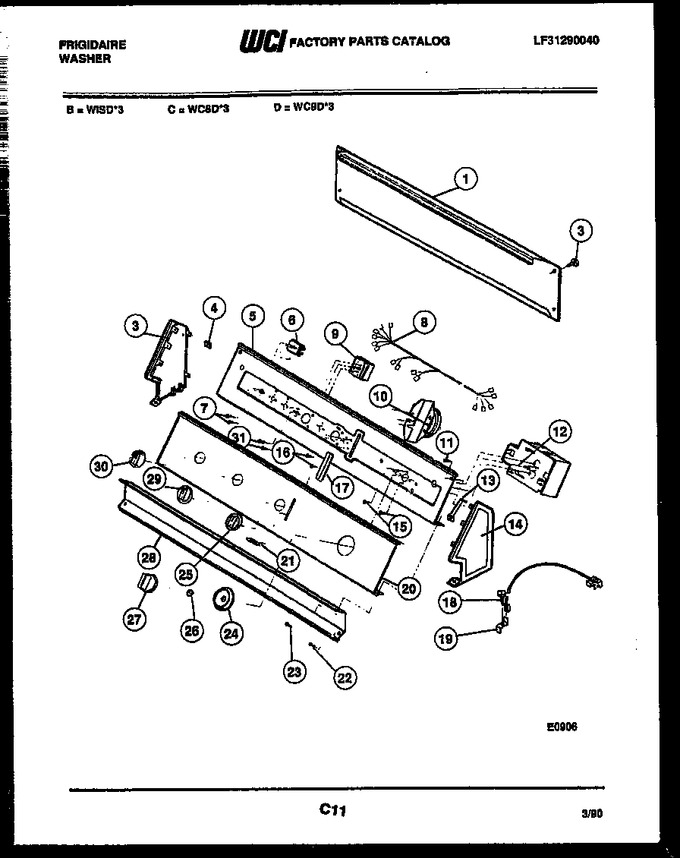

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08010781		Panel-console		Appelez-nous	-
2	08010782		Screw (4)		Appelez-nous	-
3	08010783		End-cap Lh		Appelez-nous	-
4	08014350		Nuts (8)		Appelez-nous	-
5	08015886		Bracket-controls		Appelez-nous	-
6	08015886		Switch-temperature		Appelez-nous	-
7	08002284		Screw (2)		Appelez-nous	-
8	3200269		Harness-wiring		Appelez-nous	-
9	08015879		Switch-speed		Appelez-nous	-
10	08015878		Switch-water Level		Appelez-nous	-
11	08010789		Screw (2)		Appelez-nous	-
12	3015655		Timer		Appelez-nous	-
13	08014349		Strap-ground		Appelez-nous	-
14	08010787		End-cap Rh		Appelez-nous	-
15	08006636		Screw (2)		Appelez-nous	-
16	08002339		Screw (2)		Appelez-nous	-
18	08001689		Screw		Appelez-nous	-
19	08002341		Terminal		Appelez-nous	-
20	08015891		Escutcheon		Appelez-nous	-
22	08011318		Screw (2)		Appelez-nous	-
23	08010782		Screw (3)		Appelez-nous	-
24	08015498		Indicator-timer		Appelez-nous	-
25	08014340		Knob-water Level Sw		Appelez-nous	-
26	08015493		Spacer		Appelez-nous	-
27	08014337		Knob-timer		Appelez-nous	-
28	08015897		Trim-lower		Appelez-nous	-
29	08014340		Knob-speed Switch		Appelez-nous	-
30	08014340		Knob-water Temp		Appelez-nous	-
31	08002284		Screw (2)		Appelez-nous	-
19A	08016754		Wire-ground (non-illustrated)		Appelez-nous	-
