SELECT A DIAGRAM

02 - Cabinet Parts


03 - Tub Detail


04 - Transmission Parts

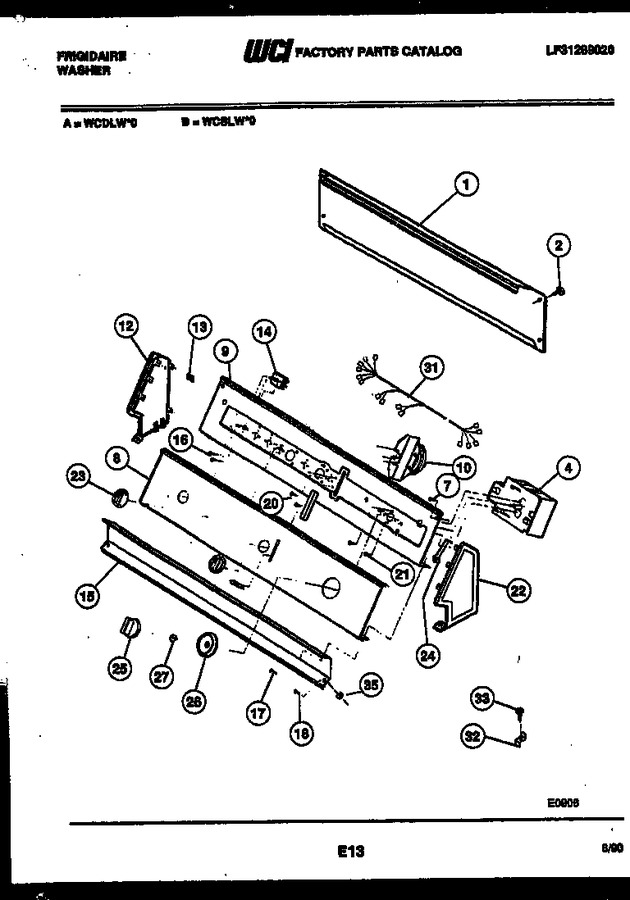

05 - Console And Control Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201322		Backsheet		Appelez-nous	-
2	5303015671		Screw (4)		Appelez-nous	-
4	5303208804		Timer		Appelez-nous	-
7	08010789		Screw		Appelez-nous	-
8	5303208809		Panel-control		Appelez-nous	-
9	5303208818		Bracket-controls		Appelez-nous	-
10	3205635		Switch-pressure		Appelez-nous	-
12	3205874		End Cap - L.h.		Appelez-nous	-
13	5308014350		Clip (8)		Appelez-nous	-
14	5308015886		Switch-temperature		Appelez-nous	-
15	5303208798		Trim Plate - Lower		Appelez-nous	-
16	3161259		Screw				$ 6.83
17	08010782		Screw		Appelez-nous	-
18	3205820		Screw		Appelez-nous	-
20	5303161233		Screw		Appelez-nous	-
21	3161188		Screw		Appelez-nous	-
22	3205876		End Cap - R.h.		Appelez-nous	-
23	5308014340		Knob-rotary (3)		Appelez-nous	-
24	08014349		Ground Strap		Appelez-nous	-
25	5308014337		Knob - Timer				$ 32.57
26	5308015498		Pointer		Appelez-nous	-
27	5308015493		Spacer - Timer				$ 14.36
31	5303208825		Harness		Appelez-nous	-
32	5379171000		Terminal		Appelez-nous	-
33	08001689		Screw		Appelez-nous	-
35	5300503065		Nut				$ 6.09
31A	F142313-000		Clip - Harness (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
