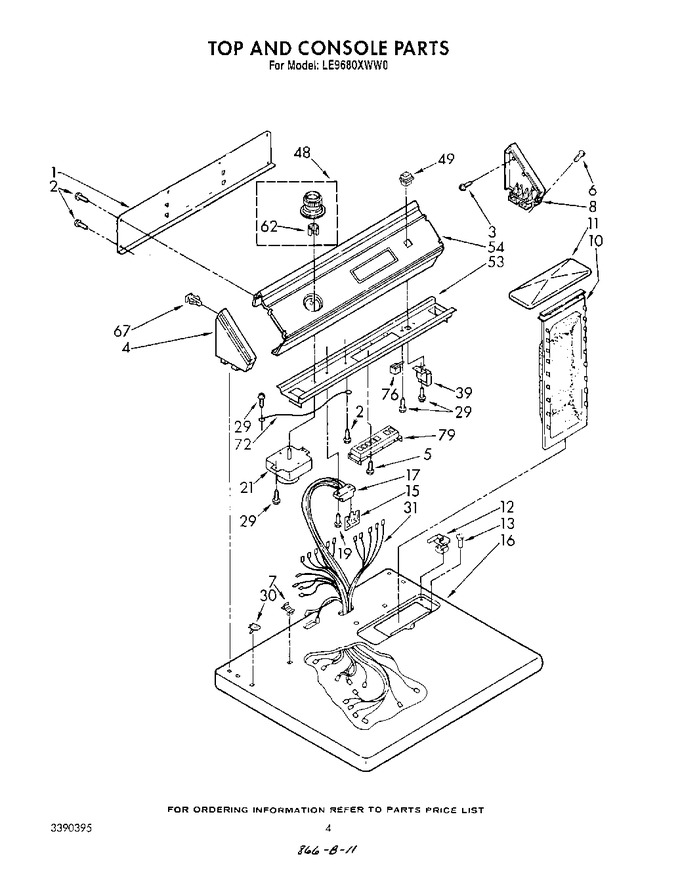

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 386367 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 63789 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP273556 | Screw (Replaces: 98881) |
|
Immediately | $ 7.04 | ||||
| 6 | WP388326 | Screw, 8-18 (Replaces: 64211) |
|
$ 7.30 | |||||
| 7 | 358472 | Stop, Push-in |
|
- | |||||
| 8 | 63795 | Cap, End. (r.h.) |
|
$ 14.10 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 33.49 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 6.95 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 6.95 | |||||
| 13 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 15 | 661513 | Control, Electronic |
|
- | |||||
| 16 | 695507 | Top (white) |
|
- | |||||
| 16 | 695508 | Top (almond) |
|
- | |||||
| 17 | 341141 | Connector, Edge |
|
- | |||||
| 19 | WP681414 | Screw, Ground 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 21 | 3389865 | Timer, 60hz. |
|
$ 164.72 | |||||
| 29 | WP681414 | Screw, Mounting (10-16 X 1/2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 3393108 | Harness, Wiring |
|
- | |||||
| 39 | 348314 | Relay, Push-to-start |
|
- | |||||
| 48 | 3387900 | Timer Knob Assembly |
|
- | |||||
| 49 | 3391230 | Button, Push To Start |
|
- | |||||
| 53 | 3391255 | Bracket, Control |
|
- | |||||
| 54 | 3391300 | Panel, Control |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 67 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 76 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 114.90 | |||||
| 79 | 3391245 | Switch, Clean-touch |
|
- | |||||
| LIT3389444 | Instructions, Installation |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| LIT3391357 | Use & Care Guide |
|
- | ||||||
| LIT3391427 | Guide, Dryer |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| LIT3390395 | List, Service Parts |
|
- |
