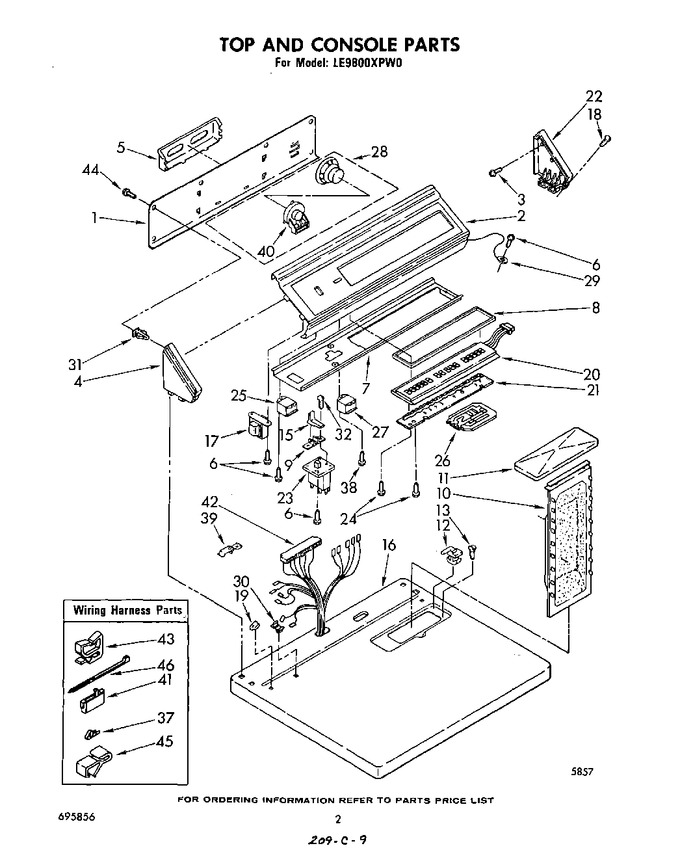

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	696198		Panel, Rear Console		Appelez-nous	-
2	386795		Panel, Control		Appelez-nous	-
3	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	63020		Rack, Literature				$ 30.32
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	696004		Bracket, Control		Appelez-nous	-
8	359787		Trim, Frame		Appelez-nous	-
9	358563		Pivot, Lever		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 33.49
11	689313		Cover, Lint Screen (golden Harvest)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	695022		Cover, Lint Screen (toast)		Appelez-nous	-
11	695023		Cover, Lint Screen (platinum)		Appelez-nous	-
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 339230)				$ 6.95
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 339229)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
15	358564		Lever		Appelez-nous	-
16	695508		Top (almond)		Appelez-nous	-
16	695509		Top (golden Harvest)		Appelez-nous	-
16	695510		Top (toast)		Appelez-nous	-
16	695511		Top (platinum)		Appelez-nous	-
16	695507		Top (white)		Appelez-nous	-
17	60996		Transformer		Appelez-nous	-
18	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
19	358473		Stop, Push-in (2)				$ 5.84
20	693263		Module, Touch		Appelez-nous	-
21	61292		Display Assembly		Appelez-nous	-
22	63795		Cap, End. (r.h.)				$ 14.10
23	691359		Relay, Start-to-stop		Appelez-nous	-
24	690756		Screw, No. 8 Hi-lo		Appelez-nous	-
25	691360		Relay, Power		Appelez-nous	-
26	61203		Microcomputer Assembly		Appelez-nous	-
27	693891		Relay, Motor		Appelez-nous	-
28	359201		Speaker & Housing		Appelez-nous	-
29	690853		Wire, Ground		Appelez-nous	-
30	358472		Nut, Push-in (2)		Appelez-nous	-
31	689559		Clip, Push-on (4)		Appelez-nous	-
32	WPW10068250		Screw   (Replaces: 358644)				$ 3.66
37	60279		Terminal		Appelez-nous	-
38	339583		Screw, 6-20 X 1/2		Appelez-nous	-
39	357144		Clip, Wire (tech Sheet/top)		Appelez-nous	-
40	359188		Housing, Speaker		Appelez-nous	-
41	60278		Connector				$ 231.17
42	694295		Harness, Electric		Appelez-nous	-
43	688412		Clip, Harness (rear Bulkhead Area)		Appelez-nous	-
44	WP489069		Screw, Hex Washer Head   (Replaces: 693994)			Immediately	$ 7.07
45	689180		Clip, Harness Retainer (door Switch Wires)		Appelez-nous	-
46	WPW10339879		Tie, Wire (console Harness Area)   (Replaces: 685963)				$ 7.11
