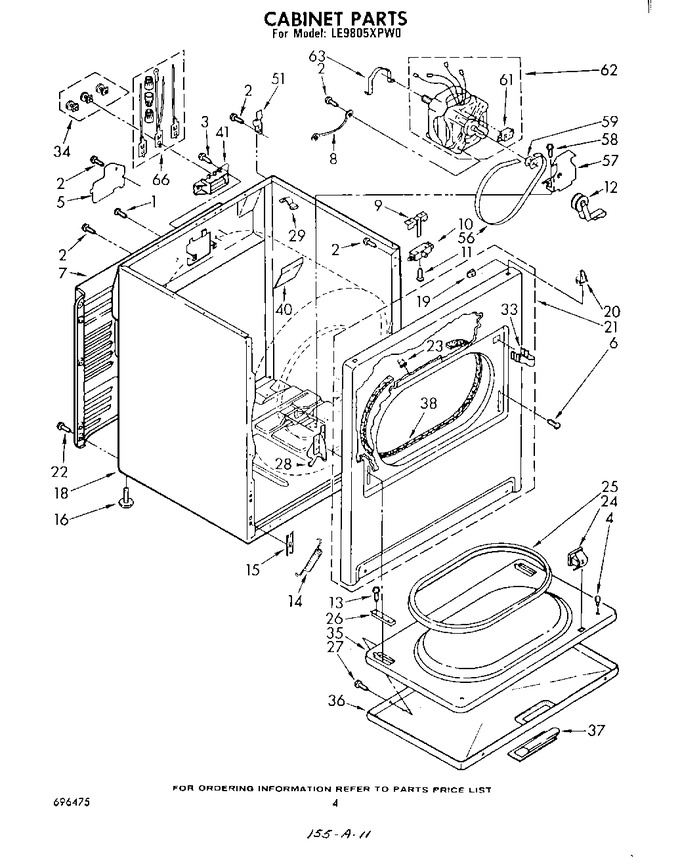

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 2 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 3 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 9416643) |
|
Immediately | $ 7.08 | ||||
| 4 | 238614 | Bumper (2) |
|
$ 72.68 | |||||
| 5 | W11736322 | Cover, Block Terminal (Replaces: 690893) |
|
- | |||||
| 6 | 342043 | Screw, 10-32 X 1/2 |
|
- | |||||
| 7 | 348365 | Panel, Rear |
|
- | |||||
| 8 | 690236 | Wire, Ground |
|
- | |||||
| 9 | WP691581 | Clip, Door Switch (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 10 | 691361 | Switch, Door |
|
- | |||||
| 11 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 6.80 | |||||
| 12 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 13 | WP308685 | Screw, 10-12 X 1/2 (Replaces: 98518) |
|
Immediately | $ 7.08 | ||||
| 14 | WPW10041960 | Spring, Door (2) (Replaces: 692495) |
|
Immediately | $ 36.60 | ||||
| 15 | W10854425 | Clip, Front Panel (2) (Replaces: 237823) |
|
Immediately | $ 14.00 | ||||
| 16 | 49621 | Foot, Plastic Dryer (4) (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 18 | 694877 | Cabinet (platinum) |
|
- | |||||
| 18 | 690842 | Cabinet (almond) |
|
- | |||||
| 18 | 690841 | Cabinet (white) |
|
- | |||||
| 18 | 690845 | Cabinet (golden Harvest) |
|
- | |||||
| 18 | 694876 | Cabinet (toast) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 688904) |
|
Immediately | $ 11.41 | ||||
| 21 | 695621 | Panel, Front (almond) |
|
- | |||||
| 21 | 695624 | Panel, Front (platinum) |
|
- | |||||
| 21 | 279443 | Panel, Front (white) (Replaces: 695620) |
|
$ 347.58 | |||||
| 21 | 695623 | Panel, Front (toast) |
|
- | |||||
| 21 | 695622 | Panel, Front (golden Harvest) |
|
- | |||||
| 22 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 25 | W10906683 | Seal, Door (Replaces: 692494) |
|
$ 115.68 | |||||
| 26 | W11252547 | Clip, Hinge (2) (Replaces: 337189) |
|
$ 19.25 | |||||
| 27 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 28 | WP8066056 | Hinge, R.h. (Replaces: 692498) |
|
Immediately | $ 88.70 | ||||
| 28 | WP8066057 | Hinge, L.h. (Replaces: 692501) |
|
$ 86.53 | |||||
| 29 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 34 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 35 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 229.10 | |||||
| 36 | 692322 | Door, Front (golden Harvest) |
|
- | |||||
| 36 | 695130 | Door, Front (toast) |
|
- | |||||
| 36 | 695131 | Door, Front (platinum) |
|
- | |||||
| 36 | WP3393549 | Door, Front (white) (Replaces: 692318) |
|
$ 158.86 | |||||
| 36 | 692319 | Door, Front (almond) |
|
- | |||||
| 37 | 690269 | Handle, Door (golden Harvest) |
|
- | |||||
| 37 | WP348721 | Handle, Door (white) (Replaces: 690265) |
|
$ 70.10 | |||||
| 37 | 690266 | Handle, Door (almond) |
|
- | |||||
| 37 | 695016 | Handle, Door (toast) |
|
- | |||||
| 37 | 695017 | Handle, Door (platinum) |
|
- | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 692493) |
|
Immediately | $ 70.90 | ||||
| 40 | 690262 | Light Shield |
|
- | |||||
| 41 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 61.43 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 56 | 341241 | Belt, Drive (Replaces: 694416) |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 59 | W10837625 | Pulley, Motor (Replaces: 694872) |
|
Immediately | $ 10.94 | ||||
| 61 | 279827 | Switch, Motor Start (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 62 | 279827 | Motor, Drive 60 Hz. (Replaces: 695075) |
|
Immediately | $ 172.76 | ||||
| 63 | WP660658 | Clamp, Motor (2) (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (2) (alt.) (Replaces: 343481) |
|
$ 7.05 |
