SELECT A DIAGRAM
02 - Console And Control Parts
03 - Cabinet Parts
04 - Tub Detail

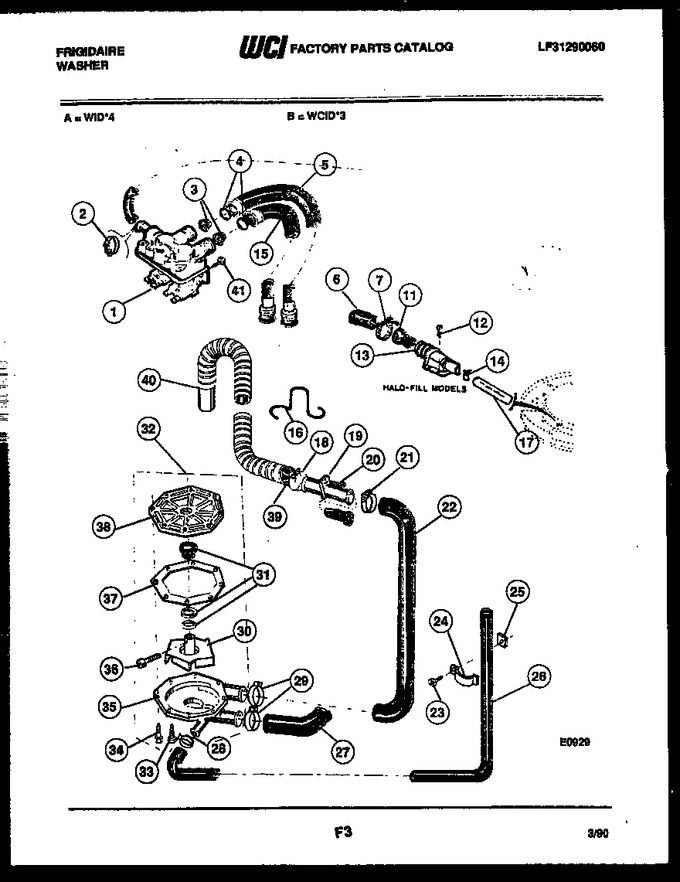

05 - Pump, Water Valve And Water Inlet
06 - Motor And Idler Arm Clutch
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134190200 | Valve-water (Replaces: 5303207418) |
|
Immediately | $ 153.09 | ||||
| 2 | 08006572 | Clamp |
|
- | |||||
| 3 | 08002439 | Screen (2) |
|
- | |||||
| 4 | 08015499 | Washer (2) |
|
- | |||||
| 5 | 6561384 | Hose-inlet, Cold |
|
- | |||||
| 6 | 08008471 | Hose-inlet |
|
- | |||||
| 7 | 08007731 | Clamp |
|
- | |||||
| 11 | 08027515 | Valve Check |
|
- | |||||
| 12 | 08016753 | Screw (3) |
|
- | |||||
| 13 | 08015905 | Funnel-inlet |
|
- | |||||
| 14 | 08016238 | Clamp-halo Fill |
|
- | |||||
| 15 | 6561384 | Hose, Inlet (hot) |
|
- | |||||
| 16 | 08002362 | Retainer |
|
- | |||||
| 17 | 08015912 | Hose-halo Fill |
|
- | |||||
| 18 | 5364154013 | Clamp |
|
- | |||||
| 19 | 08015078 | Coupling |
|
- | |||||
| 20 | 08002389 | Screw |
|
- | |||||
| 21 | 08004057 | Clamp |
|
- | |||||
| 22 | 08015531 | Hose-pump To Coupling |
|
- | |||||
| 23 | 08015500 | Screw |
|
- | |||||
| 24 | 08002356 | Clamp |
|
- | |||||
| 25 | 08002355 | Nut |
|
- | |||||
| 26 | 08002353 | Hose-pump To Lint Filter |
|
- | |||||
| 27 | 08002364 | Hose-trap To Pump |
|
- | |||||
| 28 | 08015517 | Clamp |
|
- | |||||
| 29 | 08014914 | Clamp (2) |
|
- | |||||
| 30 | 08950055 | Impeller Kit (impeller Kit 08950055 Contains Impeller, S |
|
- | |||||
| 31 | 08950093 | Seal-kit |
|
- | |||||
| 32 | 08015497 | Pump-complete |
|
- | |||||
| 33 | 08002389 | Screw (4) |
|
- | |||||
| 34 | 08002390 | Screw (4) |
|
- | |||||
| 35 | 08002391 | Housing-lower |
|
- | |||||
| 36 | 08002392 | Screw Set |
|
- | |||||
| 37 | 08002396 | Gasket |
|
- | |||||
| 38 | 08002397 | Housing Pump Cover |
|
- | |||||
| 39 | 08011277 | Bushing |
|
- | |||||
| 40 | 3205936 | Hose-drain |
|
- | |||||
| 41 | 08001638 | Screw |
|
- | |||||
| *18445 | 08027666 | Tie-drain Hose/standpipe |
|
- | |||||
| *18445 | 08002501 | Drain Hose, Stand Pipe Adapter-reduces Od Of Hose To Fit |
|
- | |||||
| *18446 | 08950052 | Syphon Break For All Drains Less Than 36 Inches High |
|
- |
