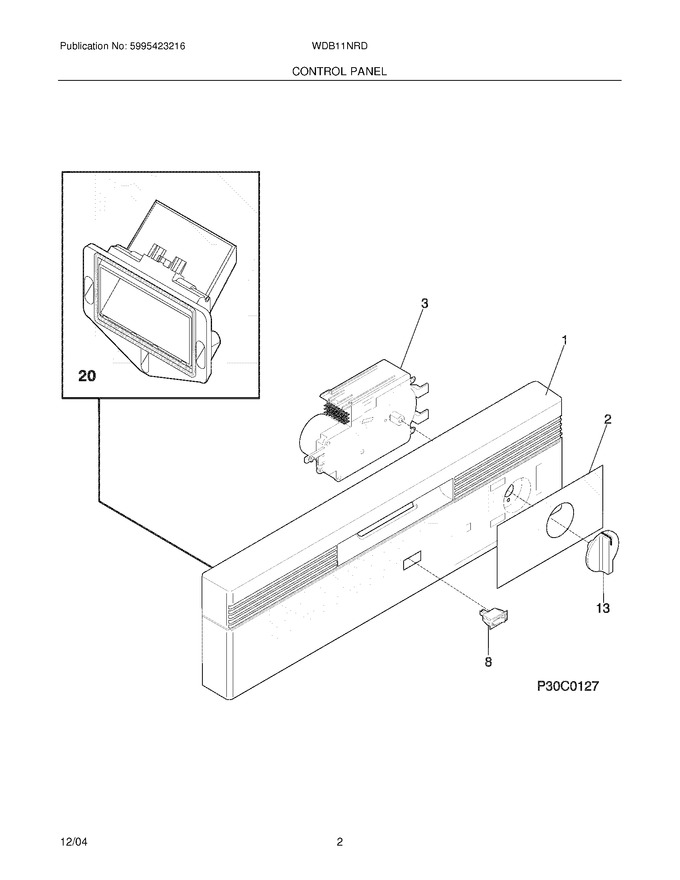

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154537401		Panel,control ,white		Appelez-nous	-
2	154536201		Insert,control Panel ,white		Appelez-nous	-
13	154338301		Knob-timer,white				$ 75.60
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154437801		Timer				$ 325.82
F8	154240401		Switch,rocker/selector ,white				$ 59.43
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34
NI	154485201		Energy Guide		Appelez-nous	-
NI	154131204		Shield-timer		Appelez-nous	-
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154474901		Wiring Harness,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
