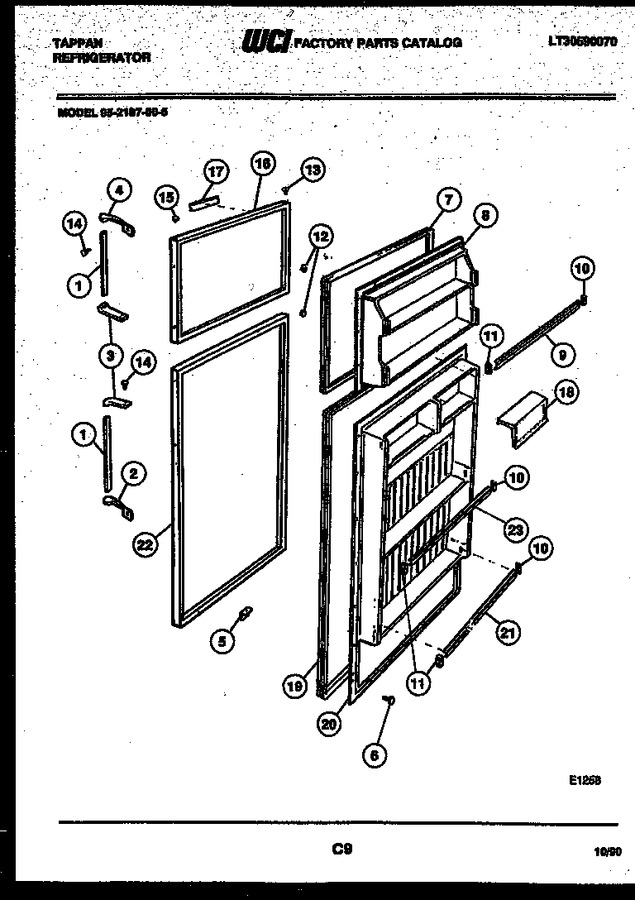

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206063 | Grip-handle (black Vinyl) (2) |
|
- | |||||
| 2 | 5303001295 | End-handle |
|
- | |||||
| 3 | 5303001296 | End-handle |
|
$ 86.36 | |||||
| 4 | 5303001297 | End-handle |
|
$ 70.22 | |||||
| 5 | 5308000255 | Stop-door (2) |
|
$ 42.20 | |||||
| 6 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 7 | 5308016617 | Gasket-freezer Door |
|
- | |||||
| 8 | 3001408 | Inner Door Panel-frzr |
|
- | |||||
| 9 | 3001409 | Rack-freezer Door (2) |
|
- | |||||
| 10 | 5303001410 | Support-rack (rh) (4) |
|
- | |||||
| 11 | 5303001411 | Support-rack (lh) (4) |
|
- | |||||
| 12 | 5308000181 | Button Plug-almd |
|
- | |||||
| 13 | 5303001308 | Button Plug-almond |
|
- | |||||
| 14 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 15 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 16 | G188158-11 | Freezer Panel-outer (almond) |
|
- | |||||
| 17 | 3001312 | Nameplate Assy |
|
- | |||||
| 18 | 5303001415 | Dairy Door (2) |
|
- | |||||
| 19 | 5308015544 | Gasket-refr Door |
|
- | |||||
| 20 | 3001417 | Panel-inner Door |
|
- | |||||
| 21 | 5303001418 | Door Rack-bottom |
|
- | |||||
| 22 | 5317869411 | Refr Panel-outer (almond) |
|
- | |||||
| 23 | 3001409 | Rack-refr Door |
|
- |
