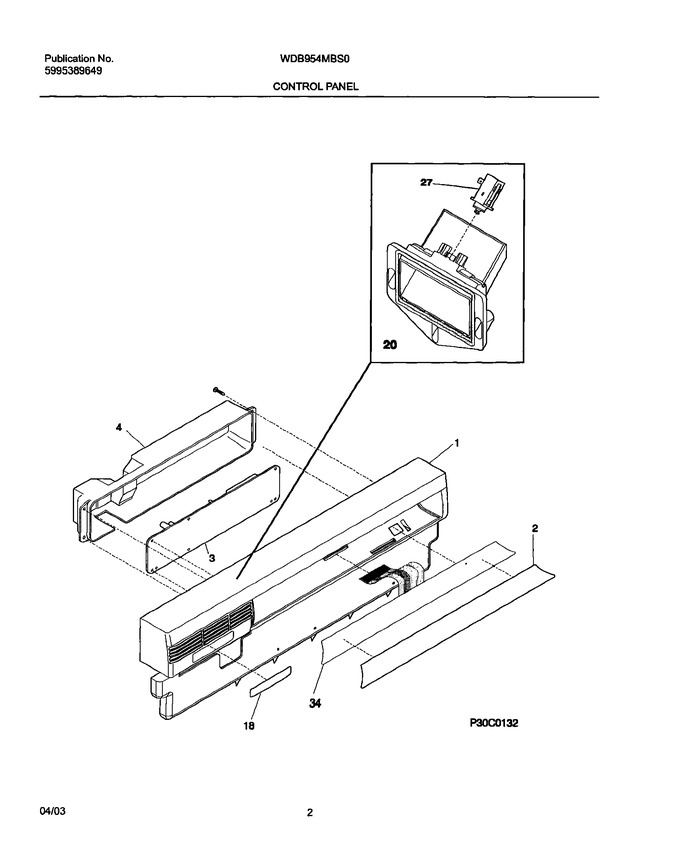

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154370301		Panel-control,white				$ 225.65
2	154471901		Insert,control Panel ,white		Appelez-nous	-
4	154287901		Cover-control				$ 182.91
18	154472101		Nameplate,white Westingho		Appelez-nous	-
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
F3	154445801		Control,electronic				$ 292.19
F34	154442101		Keypad,9pad				$ 318.68
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154444801		Wiring Harness				$ 224.28
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154399013		Label,energy Guide		Appelez-nous	-
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
