View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

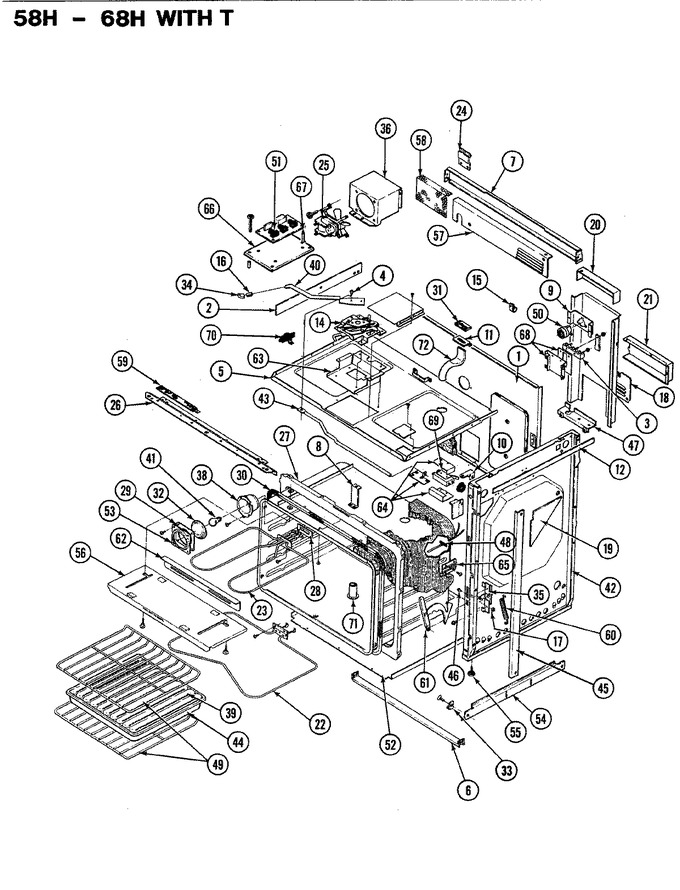

01 - Body
02 - Control Panel/top Assembly
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F108-80 | Back, Main | 01 |
|
- | ||||
| 2 | 3601F106-51 | Baffle, Side Panel | 01 |
|
- | ||||
| 3 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 01 |
|
Immediately | $ 31.65 | |||
| 4 | 7116P003-60 | Bolt | 01 |
|
- | ||||
| 5 | 4011F158-23 | Bottom, Burner Box | 01 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 6 | 3802F076-51 | Brace, Inner Side | 01 |
|
- | ||||
| 7 | 3802F071-80 | Brace, Main Top | 01 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P064-60) | 01 |
|
Immediately | $ 6.85 | |||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 01 |
|
Immediately | $ 6.85 | |||
| 8 | 3801F093-45 | Bracket, Burner Box | 01 |
|
- | ||||
| 9 | 3801F024-51 | Bracket | 01 |
|
- | ||||
| 10 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 10 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 11 | 3801F126-45 | Bracket, Seal | 01 |
|
- | ||||
| 12 | 3801F086-80 | Bracket, Spacer Lt | 01 |
|
- | ||||
| 12 | 3801F198-51 | Bracket, Tie-down | 01 |
|
- | ||||
| 12 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 16 |
|
Immediately | $ 4.69 | |||
| 12 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 16 |
|
$ 26.33 | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | 3801F084-80 | Bracket, Spacer Rt | 01 |
|
- | ||||
| 13 | 3801F122-45 | Bracket, Vent Tube | 01 |
|
- | ||||
| 14 | 8002P020-60 | Catch Assy. | 01 |
|
- | ||||
| 14 | 3818F027-45 | Channel, Switch | 01 |
|
- | ||||
| 15 | 7111P002-60 | Clamp, Wire 3/4 | 01 |
|
- | ||||
| 16 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 17 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 17 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 18 | 4005F288-51 | Cover,access | 01 |
|
- | ||||
| 19 | 4005F163-51 | Cover, Switch | 01 |
|
- | ||||
| 20 | 4005F082-80 | Cover, Housing | 01 |
|
- | ||||
| 21 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 01 |
|
Immediately | $ 6.85 | |||
| 21 | 4005F299-51 | Cover, Redundant Thermo | 01 |
|
- | ||||
| 22 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 01 |
|
$ 133.20 | ||||
| 22 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 15 |
|
$ 133.20 | ||||
| 23 | 7406P068-60 | Element, Broil | 15 |
|
- | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 01 |
|
Immediately | $ 6.85 | |||
| 23 | 7406P032-60 | Element, Broil | 01 |
|
- | ||||
| 23 | 7706P009-60 | Filler, Strip | 01 |
|
- | ||||
| 24 | 7706P170-60 | Hinge, Main Top | 01 |
|
- | ||||
| 25 | 7427P006-60 | Fan Assembly | 01 |
|
- | ||||
| 26 | 4012F018-80 | Front,burner Box Bottom | 01 |
|
- | ||||
| 26 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 27 | W10124350 | Not Required Part Or See Note (front, Upper) Not Required | 01 |
|
- | ||||
| 27 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 28 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 28 | 7201P003-60 | Gasket, Element | 01 |
|
- | ||||
| 29 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 30 | 7201P036-60 | Gasket, Oven | 01 |
|
$ 118.90 | ||||
| 31 | 7201P028-60 | Gasket, Vent | 01 |
|
- | ||||
| 32 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 33 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 34 | 7701P068-60 | Handle, Latch (blk) | 01 |
|
- | ||||
| 35 | 3418A030-34 | Hinge Assy. (rt) | 01 |
|
- | ||||
| 35 | 3418A029-34 | Hinge Assy. (lt) | 01 |
|
$ 48.47 | ||||
| 36 | 4001F050-51 | Housing, Fan Motor | 01 |
|
- | ||||
| 37 | 4001F058-51 | Housing Main Wire | 01 |
|
- | ||||
| 38 | 4001F020-23 | Housing, Lamp | 01 |
|
- | ||||
| 38 | WP7101P126-60 | Screw (Replaces: 7101P064-60) | 01 |
|
Immediately | $ 6.85 | |||
| 39 | 3413F002-23 | Insert, Broil Pan | 01 |
|
- | ||||
| 39 | Y3413F01619 | Insert, Broil Pan | 23 |
|
- | ||||
| 40 | 8009P009-60 | Lever, Door Lock | 01 |
|
- | ||||
| 41 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 42 | 4009W040-80 | Lining, Inner Side | 01 |
|
- | ||||
| 42 | 4009W077-80 | Lining, Assy Inner Side | 16 |
|
- | ||||
| 42 | 4009W059-80 | Lining, Inner Side | 04 |
|
- | ||||
| 43 | 7807P004-60 | Link, Switch | 01 |
|
- | ||||
| 44 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 01 |
|
Immediately | $ 52.04 | |||
| 44 | Y3401F02019 | Pan, Broil | 23 |
|
- | ||||
| 45 | 2618F045-74 | Panel, Side Almond | 18 |
|
- | ||||
| 45 | 2618F045-80 | Panel, Side Angle | 01 |
|
- | ||||
| 46 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 47 | 3605F146-51 | Plate, Conduit Reinforcement | 01 |
|
$ 6.06 | ||||
| 47 | 3605F156-51 | Plate,conduit | 01 |
|
- | ||||
| 48 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 20 |
|
Immediately | $ 39.55 | |||
| 48 | 12001656 | Probe, Oven Sensor (Replaces: 7430P008-60) | 09 |
|
Immediately | $ 39.55 | |||
| 48 | 12001656 | Probe, Oven Sensor (Replaces: 7430P005-60) | 01 |
|
Immediately | $ 39.55 | |||
| 49 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 50 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 51 | 7428P009-60 | Relay Board | 09 |
|
$ 199.32 | ||||
| 51 | WP7101P485-60 | Screw, Base (Replaces: 7101P084-60) | 01 |
|
$ 26.33 | ||||
| 51 | 7428P004-60 | Relay, Board Assy. | 01 |
|
- | ||||
| 52 | 3804F093-80 | Retainer, Bottom Ins. | 01 |
|
- | ||||
| 52 | 3804F102-80 | Retainer, Bottom Insulation | 05 |
|
- | ||||
| 53 | 3804F012-45 | Retainer, Lamp Guard | 01 |
|
- | ||||
| 54 | 3406F027-51 | Runner, Outer | 08 |
|
- | ||||
| 54 | 3406F025-51 | Runner,outer | 01 |
|
- | ||||
| 55 | 7101P255-60 | Screw, Leveling | 01 |
|
- | ||||
| 56 | 7101P005-60 | Screw | 01 |
|
- | ||||
| 56 | 3604F092-45 | Shield, Broil | 01 |
|
- | ||||
| 56 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 57 | 3604F187-80 | Shield, Housing | 01 |
|
- | ||||
| 58 | 3604F007-80 | Shield, Light Receptacle | 01 |
|
- | ||||
| 58 | 3604F186-80 | Shield, Housing Fan | 01 |
|
- | ||||
| 59 | 3604F149-80 | Shield, Terminal | 01 |
|
- | ||||
| 60 | WP7803P058-60 | Spring, Ov Dr (Replaces: 7803P055-60) | 01 |
|
$ 16.55 | ||||
| 61 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 62 | 3807F176-15 | Support, Broil Element | 01 |
|
- | ||||
| 63 | 3807F195-45 | Support, Catch Assy. | 01 |
|
- | ||||
| 64 | 7101P031-60 | Screw | 01 |
|
- | ||||
| 64 | 3807F193-45 | Support, Lock Switch | 01 |
|
- | ||||
| 65 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 66 | 3807F324-45 | Support, Relay Board | 01 |
|
- | ||||
| 67 | WP7101P485-60 | Screw, Base (Replaces: 7101P084-60) | 01 |
|
$ 26.33 | ||||
| 67 | 8004P022-60 | Support, Relay Board | 01 |
|
- | ||||
| 68 | 3807F157-80 | Support, Terminal Block | 01 |
|
- | ||||
| 69 | 7403P099-60 | Switch, Ovn Lock Asy----na | 01 |
|
- | ||||
| 70 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 01 |
|
Immediately | $ 6.85 | |||
| 70 | 7403P164-60 | Switch, Hi-limit | 01 |
|
- | ||||
| 71 | 8026A007-60 | Tube, Vent | 01 |
|
- | ||||
| 72 | 8026P012-60 | Tube, Vent | 01 |
|
- |
