02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

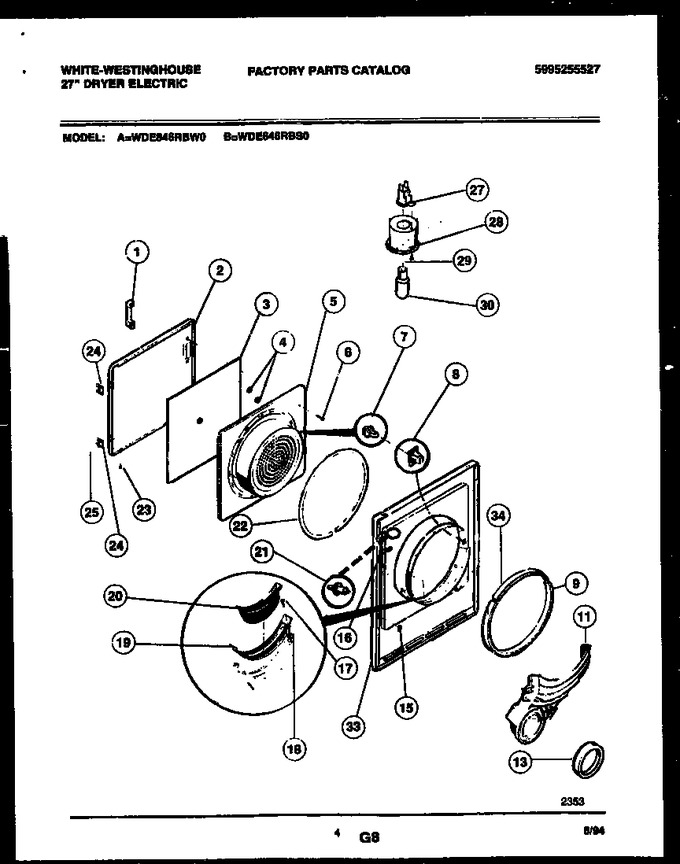

| 1 | 131194202 | Handle |
|
- | |||||
| 2 | 5303299162 | Outer Door-almond |
|
- | |||||
| 3 | 5303281067 | Heat Shield |
|
- | |||||
| 4 | 3201205 | Spacer (2) |
|
- | |||||
| 5 | 3201207 | Inner Door, Almond |
|
- | |||||
| 6 | 5303281051 | Screw |
|
$ 4.52 | |||||
| 7 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 8 | 5366021400 | Door Catch (Replaces: 5307521419) |
|
Immediately | $ 55.99 | ||||
| 9 | 5303281049 | Seal |
|
$ 38.12 | |||||
| 11 | 5303937116 | Air Duct |
|
- | |||||
| 13 | 134417000 | Seal (Replaces: 5303281013) |
|
Immediately | $ 9.22 | ||||
| 15 | 5303281074 | Clip Guide (4) |
|
$ 18.27 | |||||
| 16 | 131063700 | Clip Guide (4) |
|
$ 18.11 | |||||
| 17 | 3281178 | Screw (2) |
|
- | |||||
| 18 | 3281061 | Clip (2) |
|
$ 2.73 | |||||
| 19 | 5303270382 | Lint Trap & Frame |
|
- | |||||
| 20 | 5303270382 | Lint Trap |
|
- | |||||
| 21 | 08006623 | Door-switch |
|
- | |||||
| 22 | 5303201210 | Door Gasket |
|
$ 45.68 | |||||
| 23 | 5303161187 | Screw (2) |
|
- | |||||
| 24 | 5303281050 | Door Hinge (2) |
|
$ 20.58 | |||||
| 25 | 134156200 | Screw (8) (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 27 | 5308015210 | Receptacle |
|
$ 61.40 | |||||
| 28 | 5308015259 | Light Holder |
|
$ 54.32 | |||||
| 29 | 5303281035 | Screw |
|
- | |||||
| 30 | 5308027430 | Lamp |
|
$ 18.85 | |||||
| 33 | 131003402 | Front Panel-almond |
|
- | |||||
| 34 | DE790 | Drum, Glide (Replaces: 131154800) |
|
Immediately | $ 40.53 | ||||
| 34A | 5303305325 | Almond (touch-up Paint) |
|
- |
