SELECT A DIAGRAM

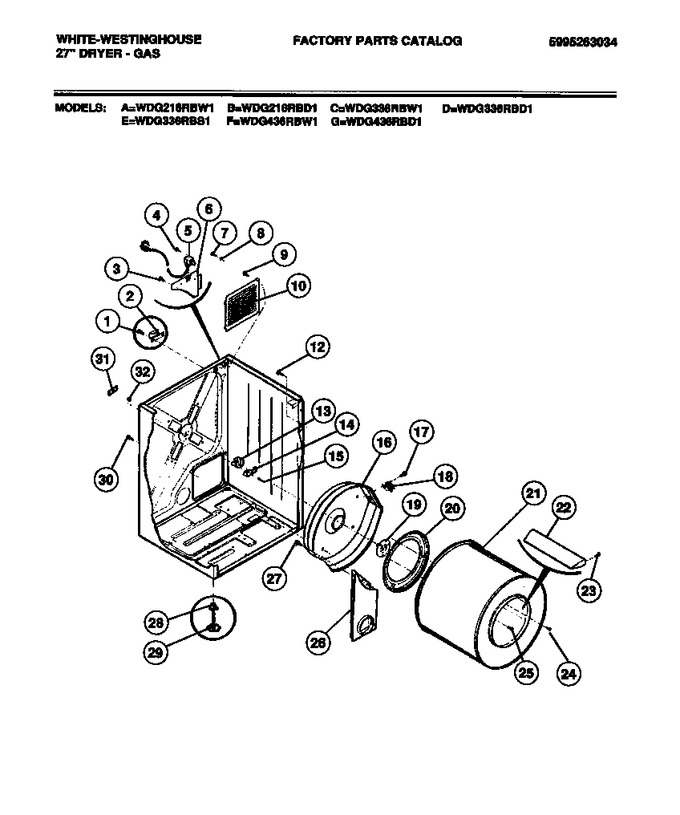

02 - Cabinet, Drum


03 - Door


04 - Console, Controls


05 - Motor


06 - Ignitor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011338		Screw (4)		Appelez-nous	-
2	3281175		Hinge (2)				$ 10.16
3	5303015671		Screw		Appelez-nous	-
4	5308015309		Screw		Appelez-nous	-
5	5303281129		Cord-service		Appelez-nous	-
6	3281130		Cover		Appelez-nous	-
7	134154100		Screw   (Replaces: 131301100)				$ 13.46
8	3281107		Washer		Appelez-nous	-
9	5303281035		Screw		Appelez-nous	-
10	5303281018		Plate-cover		Appelez-nous	-
12	5303010202		Screw (4)				$ 5.15
13	131825900		Bearing (included In Rear Bearing Kit.)   (Replaces: 5303281008)			Immediately	$ 10.97
14	131724301		Bracket-bearing (included In Rear Bearing Kit)   (Replaces: 5303281023)			Immediately	$ 25.66
15	5303281033		Screw		Appelez-nous	-
16	5303281119		Heater Hsg & Seal Assembly		Appelez-nous	-
17	3281120		Screw (2)		Appelez-nous	-
18	5308015399		Thermostat - Safety				$ 242.18
19	5303931781		Shaft (included In Rear Bearing Kit)				$ 142.32
20	3204254		Baffle				$ 129.00
21	3201199		Drum				$ 246.86
22	137552900		Vane   (Replaces: 5303201200)				$ 54.95
23	131382300		Screw (6)   (Replaces: 3202754)			Immediately	$ 13.46
24	131378200		Screw (3)		Appelez-nous	-
25	5303205255		Screw (3)				$ 5.04
26	3281123		Duct-heat		Appelez-nous	-
27	5303281035		Screw		Appelez-nous	-
28	3201202		Grommet (4)				$ 22.47
29	5303281032		Bolt-foot (4)		Appelez-nous	-
30	5303010202		Screw				$ 5.15
31	5303281020		Nut, Flat (included In Rear Bearing Kit.)				$ 17.01
32	5303281019		Ball (included In Rear Bearing Kit.)				$ 16.30
*54680	5303281039		Clip-cab. Front Btm				$ 8.09
*54681	5303281153		Rear Bearing Kit			Immediately	$ 46.64

    View Diagram in Separate Window       Print Part List
