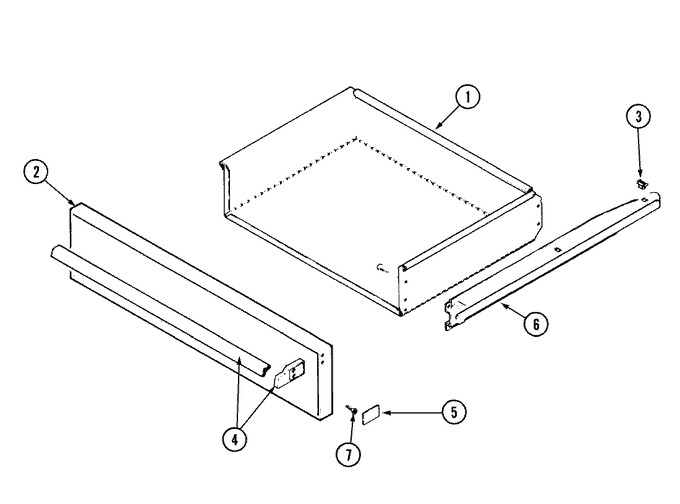

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3405F008-80		Drawer, Service	01	Appelez-nous	-
2	W10127315		Drawer, Service	01	Appelez-nous	-
2	3801F115-51		Bracket, Drawer	01	Appelez-nous	-
3	8016P009-60		Glide, Drawer	01	Appelez-nous	-
3	8016P004-60		Glide, Drawer	01	Appelez-nous	-
4	7701P031-60		Handle, Door White	01	Appelez-nous	-
5	7728P012-60		Insert, Oven Door Handle	01	Appelez-nous	-
6	3406F026-80		Runner, Inner	01	Appelez-nous	-
7	7101P123-60		Screw	01	Appelez-nous	-
