SELECT A DIAGRAM

01 - Cover


02 - P16v0036 Dry Cab,heater

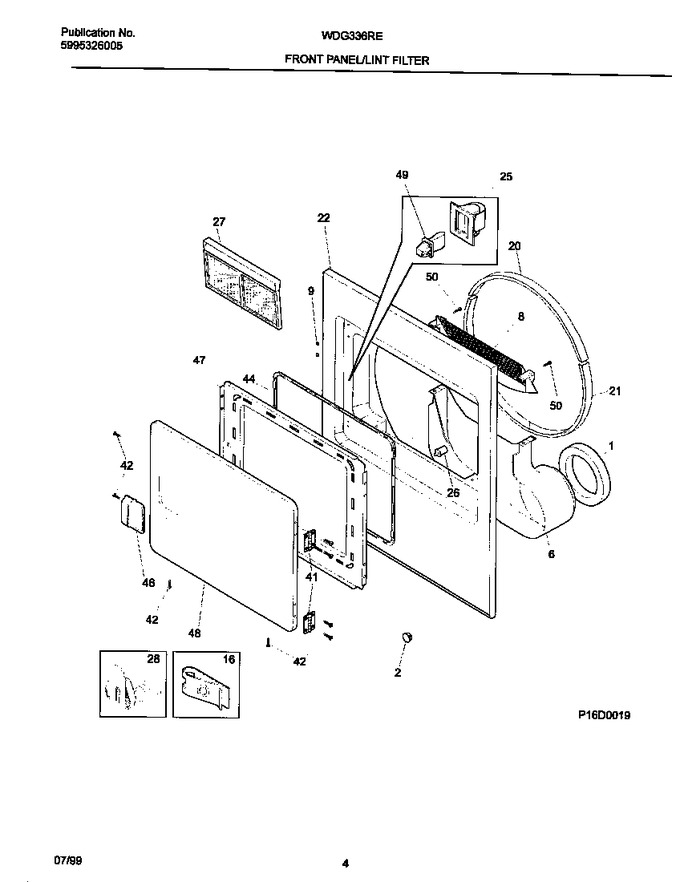

03 - P16d0019 Frnt Pnl,door


04 - P16c0066 Control Panel


05 - P16m0016 Motor,blower


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal-air Duct   (Replaces: 131581400)			Immediately	$ 9.22
6	131621900		Duct-air		Appelez-nous	-
8	131622202		Cover-lint Trap   (Replaces: 131622201)				$ 94.82
9	131633201		Plug-almond		Appelez-nous	-
16	131063700		Clip-wiring				$ 18.11
20	DE790		Glide-drum   (Replaces: 5303937139)			Immediately	$ 40.53
21	5303283286		Seal-basket Lower				$ 48.04
22	131635723		Alm No Lite Frt Pnl		Appelez-nous	-
25	131658800		Catch-door			Immediately	$ 68.38
26	5308001614		Switch-door		Appelez-nous	-
27	131450300		Lint Trap			Immediately	$ 30.47
28	5303281074		Clip-guide,(3)				$ 18.27
41	134222900		Hinge-door   (Replaces: 131627500)				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131644701		Door Handle-almond		Appelez-nous	-
47	131574005		Door-inner Almond		Appelez-nous	-
48	131789304		Door-outer Almond		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw-lock, Ph Ab, 10-16 X .50		Appelez-nous	-
*17683	5308027429		Adhesive, High Temp			Immediately	$ 60.25
*17684	131474700		Insulation				$ 33.67

    View Diagram in Separate Window       Print Part List
