Diagram for 02 - Cabinet And Component Parts
02 - Cabinet And Component Parts

Diagram for 03 - Door Parts
03 - Door Parts

Diagram for 04 - Console And Control Parts
04 - Console And Control Parts

Diagram for 05 - Blower And Drive Parts
05 - Blower And Drive Parts

Diagram for 06 - Burner, Igniter And Valve
06 - Burner, Igniter And Valve


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
3 5308006553 Screw Appelez-nous -
4 5303297139 Timer Special Order $ 387.45

5 131048000 Switch, Start Appelez-nous -
6 131048100 Switch, Temperature Appelez-nous -
7 131111501 Pushbutton Special Order $ 13.79

8 5303291351 End Cap-r.h. Appelez-nous -
9 3205821 Spring Catch In-Stock Immediately $ 35.44

11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

12 131118603 Knob-rotary Appelez-nous -
14 5303210285 Buzzer Special Order $ 65.78

15 131157806 Bracket - Control Appelez-nous -
16 5303015671 Screw Appelez-nous -
17 5303291343 End Cap-l.h. Appelez-nous -
18 5303297854 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 131118903 Knob-timer Appelez-nous -
25 131260800 Panel-control Appelez-nous -
26 131159500 Harness Appelez-nous -
28 131130302 Panel-top-white Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

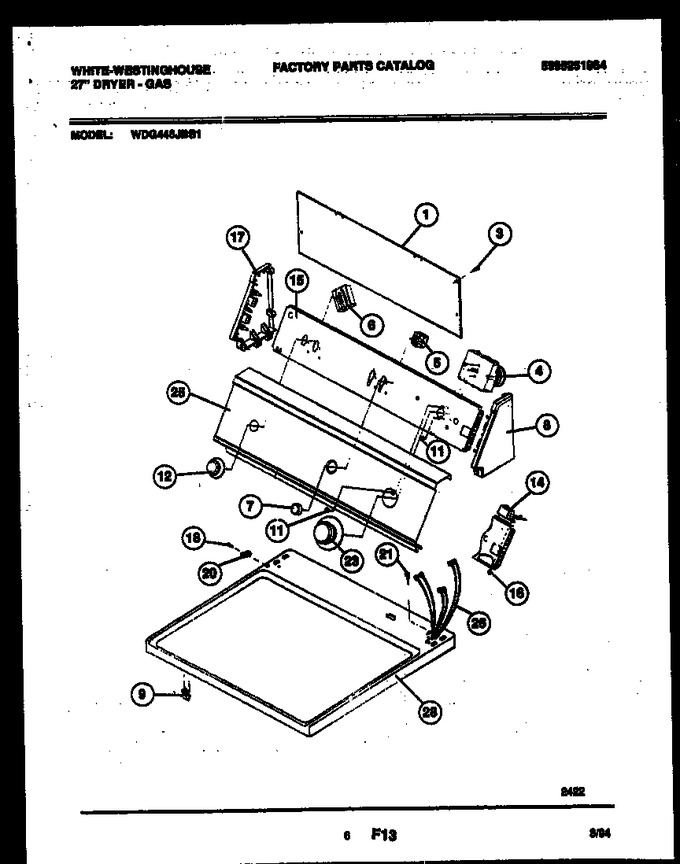

Diagram for WDG446JBS1
