Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 131194202 Handle Appelez-nous -
2 5303299162 Panel-od Almd Appelez-nous -
3 5303281067 Shield, Heat Appelez-nous -
4 3201205 Spacer Appelez-nous -
5 3201207 Panel-i.d. Almd Appelez-nous -
6 5303281051 Screw Special Order $ 4.52

7 5303207102 Strike Door   (Replaces: 5303211430) In-Stock Immediately $ 19.85

8 5366021400 Catch, Door   (Replaces: 5307521419) In-Stock Immediately $ 55.99

9 5303281049 Seal Special Order $ 38.12

11 5303937116 Duct-air Appelez-nous -
13 134417000 Seal   (Replaces: 5303281013) In-Stock Immediately $ 9.22

15 5303281074 Clip Guide (4) Special Order $ 18.27

16 131063700 Clip Special Order $ 18.11

17 3281178 Screw Appelez-nous -
18 3281061 Clip Special Order $ 2.73

19 5303270382 Frame Lint Trap Appelez-nous -
20 5303270382 Trap-lint Appelez-nous -
21 5308001614 Switch-door Appelez-nous -
22 5303201210 Gasket, Door Special Order $ 45.68

23 5303161187 Screw (2) Appelez-nous -
24 5303281050 Hinge, Door (2) Special Order $ 20.58

25 5303161187 Screw (8) Appelez-nous -
31 3201213 Door-access Almd Appelez-nous -
32 3281066 Screw Appelez-nous -
33 5303937122 Panel-front Almond Appelez-nous -
34 DE790 Drum, Glide   (Replaces: 131154800) In-Stock Immediately $ 40.53


    View Diagram in Separate Window     Print Icon   Print Part List

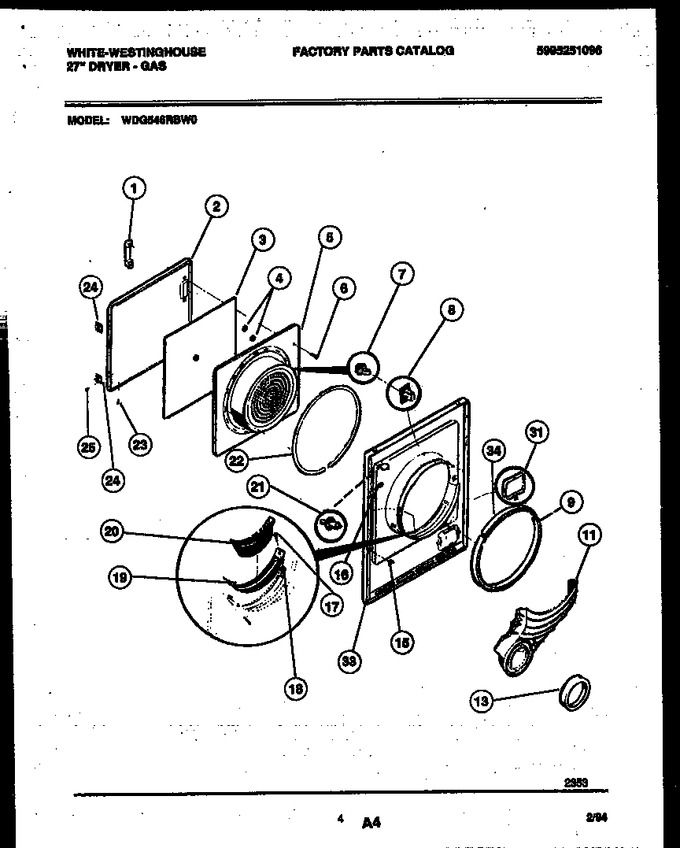

Diagram for WDG546RBD0
