Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
3 5308006553 Screw (4) Appelez-nous -
4 131063300 Timer Appelez-nous -
5 131048000 Switch, Start Appelez-nous -
6 131048200 Switch-temperature Special Order $ 193.03

7 131111501 Pushbutton Special Order $ 13.79

8 5303291351 End Cap-r.h. Appelez-nous -
9 3205821 Spring Catch In-Stock Immediately $ 35.44

10 131033301 Pushbutton (4) Appelez-nous -
11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

14 5303210285 Buzzer Special Order $ 65.78

15 131297302 Bracket-controls Appelez-nous -
16 5303015671 Screw Appelez-nous -
17 5303291343 End Cap-l.h. Appelez-nous -
18 5303297854 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 131118903 Knob-timer Appelez-nous -
25 131260600 Panel-control Appelez-nous -
26 131159700 Harness Appelez-nous -
28 131130302 Panel-top-white Appelez-nous -

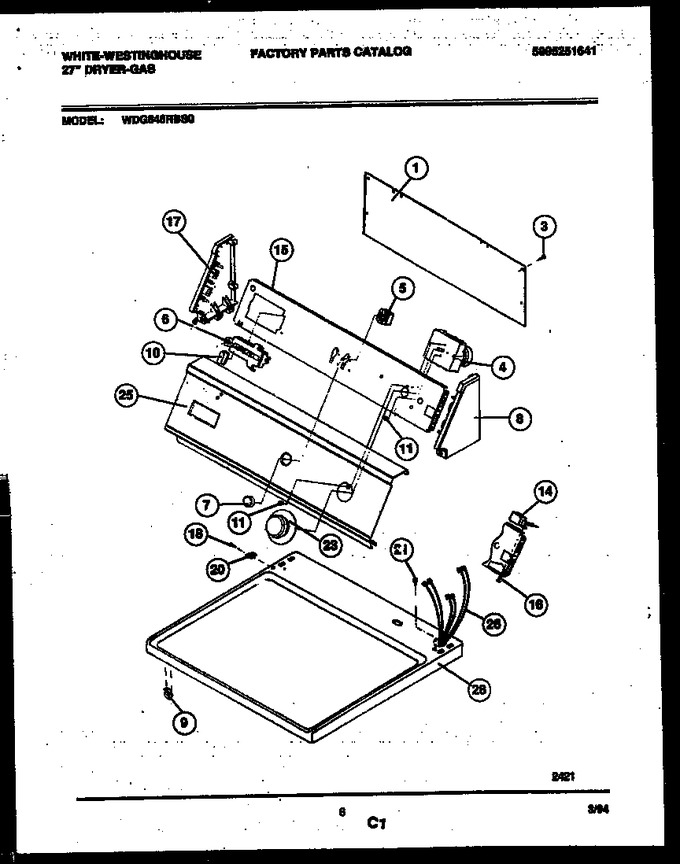

    View Diagram in Separate Window     Print Icon   Print Part List
