01 - Backguard Assy


02 - Cabinet Assy-heater Section


03 - Heater Burner And Control Components


04 - Lower Broiler Components


05 - Lower Oven Compnt Without Spark Ign


06 - Oven Door Assy


07 - Page 1


08 - Top & Top Burner Assy Without Spark Ign

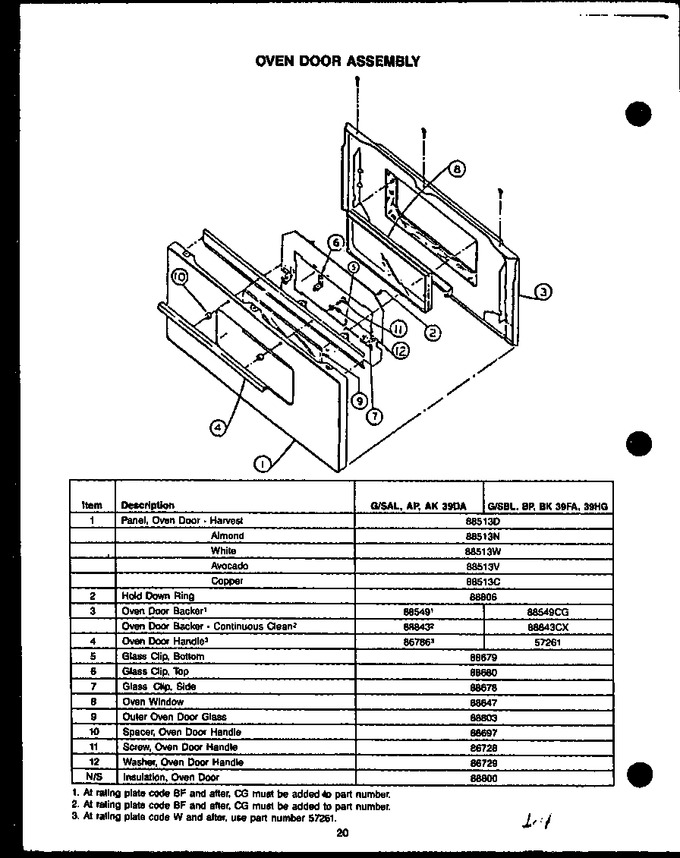

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	088513N		Panel Oven Door		Appelez-nous	-
1	Y088513V		Panel, Oven Door, Avocado		Appelez-nous	-
1	Y088513D		Panel, Oven Door, Gold		Appelez-nous	-
1	088513W		Panel Oven Door		Appelez-nous	-
1	Y088513C		Panel, Oven Door, Dark Copper		Appelez-nous	-
2	88806		Hold Down Ring Start At Code P		Appelez-nous	-
3	88549CG		Sub 88843cg, Backer, Oven Door		Appelez-nous	-
3	88843CX		Oven Door Backer, Continous Cl		Appelez-nous	-
4	Y0057261		Sub 88812, Handle Oven Dr {j}		Appelez-nous	-
5	0088679		Glass Clip, Bottom		Appelez-nous	-
6	0088680		Glass Clip, Top		Appelez-nous	-
7	0088678		Glass Clip, Side		Appelez-nous	-
8	Y0088647		Window, Ov.dr.(2)pane		Appelez-nous	-
9	Y0088803		Glass-window,ov Dr		Appelez-nous	-
10	Y0088697		Handle Spacer, Plastic (j)		Appelez-nous	-
11	Y0086728		Screw, No.10-24x1/2 (ph Trus Hd)		Appelez-nous	-
12	Y0086729		Washer, Steel (1/4 X 9/16)		Appelez-nous	-
NI	Y0088800		Sub 41966, Insulation		Appelez-nous	-
