SELECT A DIAGRAM

02 - Door Section


03 - Shelves, Controls, Divider, Mullion

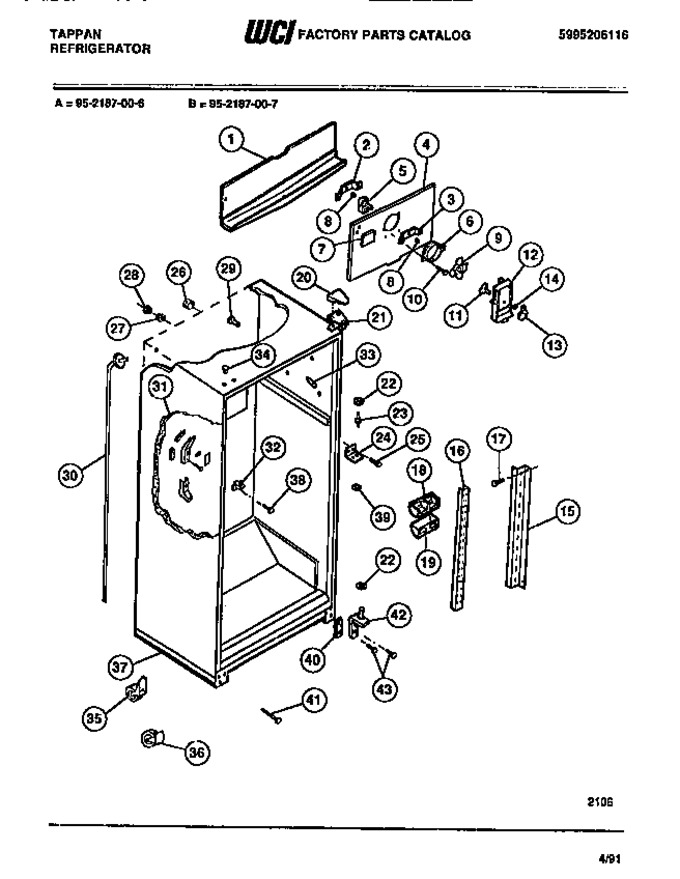

04 - Cabinet W/fan Assembly


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001470		Trough-drain		Appelez-nous	-
2	5303205119		Bracket-fan Mtr- Rear		Appelez-nous	-
3	5303205118		Bracket-fan Mtr-frnt		Appelez-nous	-
4	5308013665		Coll Cover		Appelez-nous	-
5	5300158289		Motor			Immediately	$ 149.94
6	5308000124		Ring-fan Orifice				$ 53.58
7	5308013636		Decorative Plug		Appelez-nous	-
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5308000010		Blade Fan			Immediately	$ 49.03
10	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
11	5303001331		Damper				$ 31.71
12	3001451		Cover-fan		Appelez-nous	-
13	5308011762		Knob-damper		Appelez-nous	-
14	5303001028		Nut, Push		Appelez-nous	-
15	5308000302		Channel-shelf Mtg (2)		Appelez-nous	-
16	5303015409		Center Channel		Appelez-nous	-
17	5308010253		Screw-channel Mounting (6)		Appelez-nous	-
18	5308014667		Air Deflector		Appelez-nous	-
19	5303001448		Cover-air Deflector		Appelez-nous	-
21	5308012843		Bracket-upper Hinge				$ 71.47
22	5308000007		Washer, Nylon (2)		Appelez-nous	-
23	5308000184		Center Pin				$ 8.87
24	5303001369		Hinge-center		Appelez-nous	-
25	5308012258		Screw				$ 2.25
26	5303001198		Tube-rubber		Appelez-nous	-
27	5303001286		Ferrule-inner		Appelez-nous	-
28	5303001287		Ferrule-outer		Appelez-nous	-
29	5308000097		Support-coil Cover		Appelez-nous	-
30	5303207353		Seal-ring (non-illustrated)				$ 6.81
31	5303001443		Duct-meat Keeper, Lower		Appelez-nous	-
32	5308000056		Spout Drain				$ 11.66
35	5308009773		Roller Assy-rear		Appelez-nous	-
36	5303212490		Roller Assy-front		Appelez-nous	-
37	5303212487		Base-cabinet		Appelez-nous	-
38	5303001361		Push Pin		Appelez-nous	-
39	5308000186		Washer, Nylon			Immediately	$ 6.02
40	5303212488		Shim				$ 5.25
41	5303271412		Bolt-1/4-20-roller Adj (2)				$ 37.64
42	5303212489		Bracket-hinge Lower		Appelez-nous	-
43	5303001320		Screw-lower Hinge/gusset (6)		Appelez-nous	-
18A	5303200590		Extension & Insulation Air Deflector (non-illustrated)		Appelez-nous	-
18B	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
20A	5303001664		Cover-top Hinge-avoc		Appelez-nous	-
21A	5303001037		Shim (non-illustrated)				$ 12.39
21B	241710601		Screw   (Replaces: 5303001479)				$ 13.46
25A	5303001323		Shim (non-illustrated)		Appelez-nous	-
30A	5303210377		Tube Drain & Seal Ring				$ 109.31
31A	5308009764		Insulation-meat Keeper Duct-lwr		Appelez-nous	-
31B	5303001445		Damper-meat Keeper Duct		Appelez-nous	-
31C	3001446		Label-meat Keeper		Appelez-nous	-
31D	08017510		Duct-meat Keeper (upper)		Appelez-nous	-
31E	5308009765		Insulation-meat Keeper Duct-upper		Appelez-nous	-
31F	5308016568		Screw 8a-1-1-1/2`` (non-illustrated)		Appelez-nous	-
33A	5303202337		Trim-cabinet Corner-avocado		Appelez-nous	-
34A	5303001677		Button-plug-avoc (2)		Appelez-nous	-
35B	5308009762		Bolt-1/4-28x1/2 (2) (non-illustrated)		Appelez-nous	-
35B	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
3A	5308000107		Bracket-connector				$ 33.23
3B	5303210353		Screw-mtg		Appelez-nous	-
43A	5303212596		Gusset-tapping Plate (lh) (non-illustrated)		Appelez-nous	-
43B	5303212597		Gusset-tapping Plate Rh (non-illustrated)		Appelez-nous	-
43C	5308012296		Tapping Plate (non-illustrated)				$ 47.44
4A	5303209814		Nut-``u`` Type		Appelez-nous	-
4B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
6A	5303208309		Plug, Short Test Hole				$ 45.50

    View Diagram in Separate Window       Print Part List
