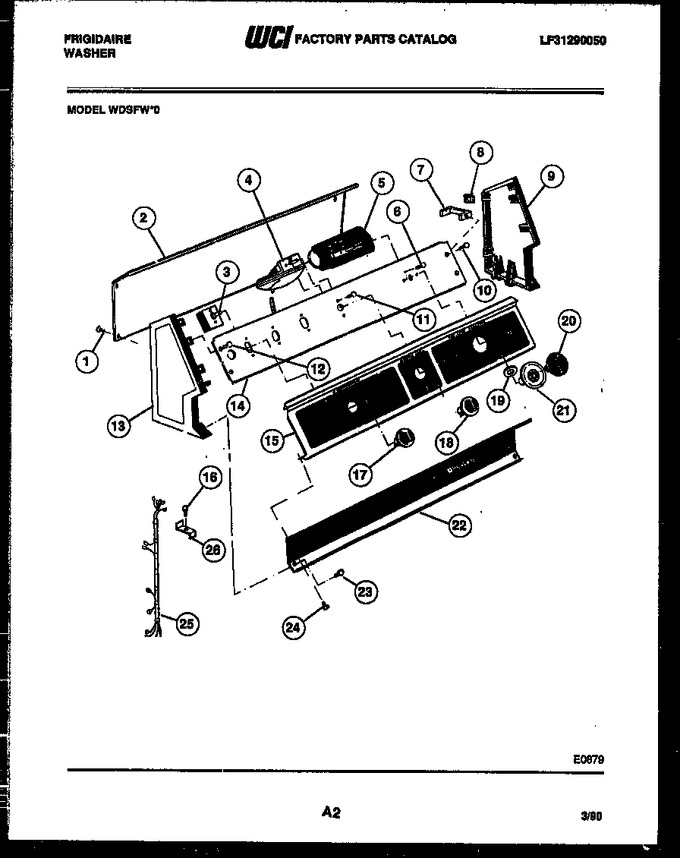

02 - Console And Control Parts


03 - Cabinet Parts


04 - Tub Detail


05 - Pump, Water Valve And Water Inlet


06 - Motor And Idler Arm Clutch


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08010782		Screws (4)		Appelez-nous	-
2	08010781		Panel-console Rear		Appelez-nous	-
3	08014346		Switch-water Temperature Selector		Appelez-nous	-
4	08014348		Switch-water Level		Appelez-nous	-
5	3015649		Timer, Washer		Appelez-nous	-
6	08006636		Screws (2)		Appelez-nous	-
7	08014349		Strap-ground		Appelez-nous	-
8	08014350		Clips (8)		Appelez-nous	-
9	08010787		End-cap Rh		Appelez-nous	-
10	08010789		Screws (2)		Appelez-nous	-
11	08002339		Screws (2)		Appelez-nous	-
12	08002284		Screws (2)		Appelez-nous	-
13	08010783		End-cap Lh		Appelez-nous	-
14	08014339		Bracket-controls Mounting		Appelez-nous	-
15	3201406		Escutcheon		Appelez-nous	-
16	08001689		Screw		Appelez-nous	-
17	08014340		Knob-water Temperature Switch		Appelez-nous	-
18	08014340		Knob-water Level Switch		Appelez-nous	-
19	08015493		Spacer-timer		Appelez-nous	-
20	08014337		Knob-timer		Appelez-nous	-
21	08015498		Indicator-timer Dial		Appelez-nous	-
22	08015897		Trim-lower		Appelez-nous	-
23	08011318		Screws (2)		Appelez-nous	-
24	08010782		Screws (3)		Appelez-nous	-
25	3018965		Wiring Harness		Appelez-nous	-
26	08002341		Terminal		Appelez-nous	-
