02 - Cabinet Front And Wrapper

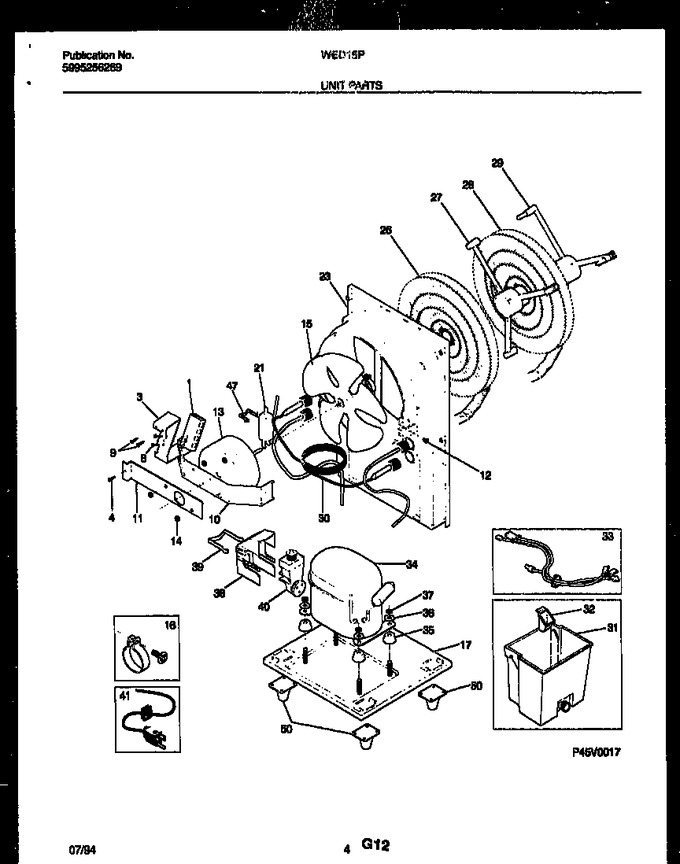

03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296823		Humidistat Control				$ 142.17
3	5303211050		Bracket-control		Appelez-nous	-
4	5303015427		Screw		Appelez-nous	-
8	5303007620		Screw				$ 9.31
9	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
10	5303296828		Bracket-motor		Appelez-nous	-
11	5303296829		Bracket-dampener		Appelez-nous	-
12	3002801		Screw		Appelez-nous	-
13	5303304137		Motor-fan		Appelez-nous	-
14	08007481		Nut				$ 5.81
15	5308016448		Fan Blade		Appelez-nous	-
16	5303303699		Clamp		Appelez-nous	-
17	5303304132		Base W/foot		Appelez-nous	-
21	5308016437		Switch-bucket Shut-off				$ 41.55
23	5303303501		Shroud		Appelez-nous	-
26	3017706		Condenser		Appelez-nous	-
27	08016455		Clamp-evaporator Inner		Appelez-nous	-
28	3203627		Evaporator, W/clamps		Appelez-nous	-
29	08016454		Clamp-evaporator Outer		Appelez-nous	-
31	08016458		Bucket		Appelez-nous	-
32	5303272520		Float		Appelez-nous	-
33	5303300830		Harness		Appelez-nous	-
34	5303017491		Compressor		Appelez-nous	-
35	5303001777		Grommet-compressor, (4)		Appelez-nous	-
36	08002956		Washer-compressor		Appelez-nous	-
37	08012645		Nut-compressor		Appelez-nous	-
38	3003005		Cover-terminal		Appelez-nous	-
39	3003006		Strap-cover		Appelez-nous	-
40	5303017526		Overload Relay		Appelez-nous	-
41	5303279143		Cord-power		Appelez-nous	-
47	327100001		Clip-switch To Shroud		Appelez-nous	-
50	08016447		Foot		Appelez-nous	-
