SELECT A DIAGRAM
02 - Air, Water And Condensing Parts
03 - Cabinet And Control Parts
04 - Compressor Parts
SELECT A DIAGRAM
New Model Search:

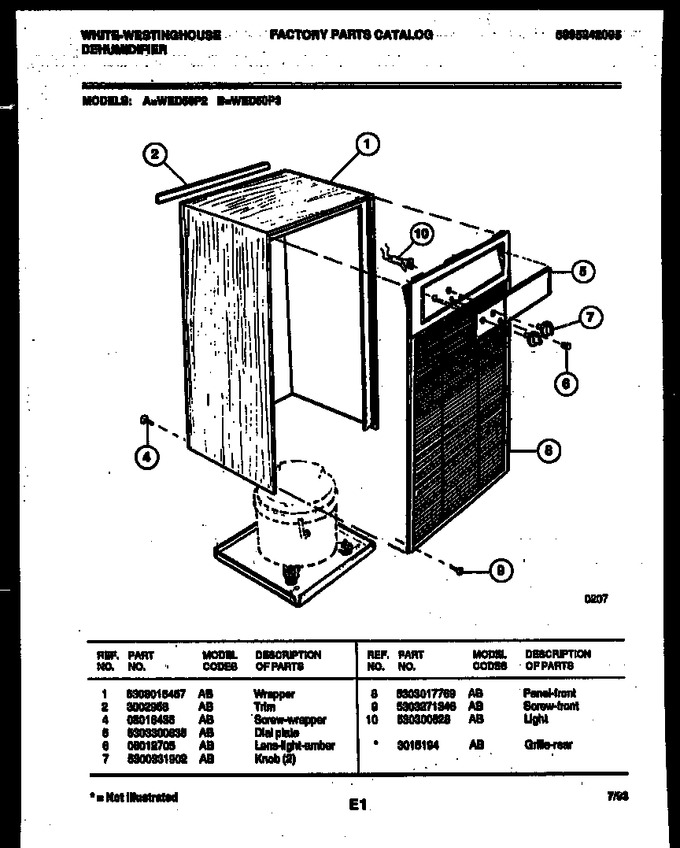

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016457 | Wrapper |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 08016435 | Screw Wrapper |
|
- | |||||
| 5 | 5303300835 | Dial Plate |
|
- | |||||
| 6 | 08012705 | Lens Light Amber |
|
- | |||||
| 7 | 5300331902 | Knob (2) |
|
- | |||||
| 8 | 5303017769 | Panel Front |
|
- | |||||
| 9 | 5303271346 | Screw-front |
|
- | |||||
| 10 | 530300828 | Light |
|
- | |||||
| *80664 | 3015194 | Grille-rear |
|
- |
