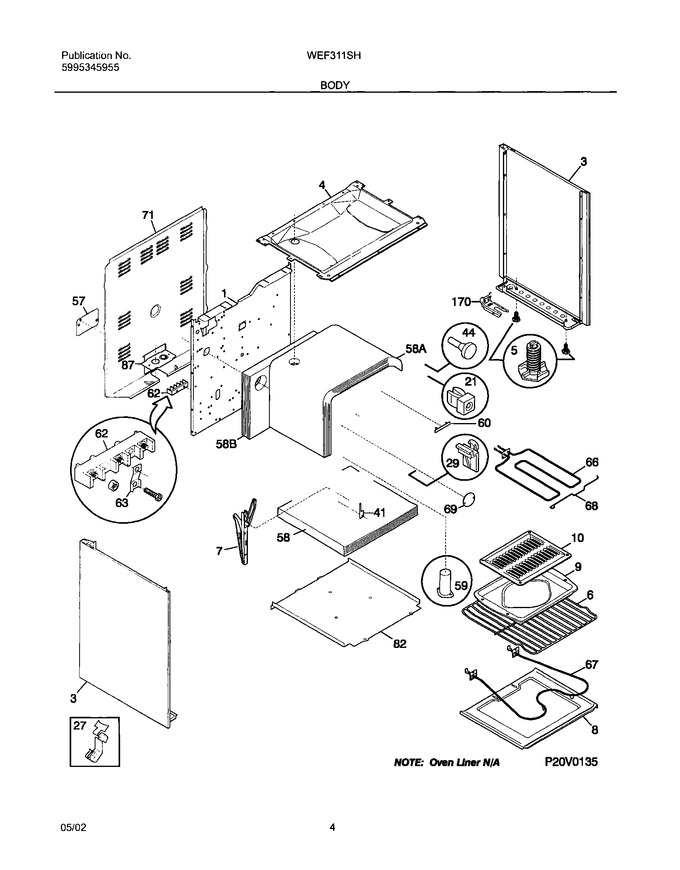

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080803		Panel-main Back,galv Steel ,short		Appelez-nous	-
3	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
3	316081034		Panel-bodyside,white ,rh		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007007		Hinge-oven Door, (2)		Appelez-nous	-
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
57	316081100		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073601		Tube, Oven Vent		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil,2950 W				$ 202.71
68	316075300		Support-element, Broil		Appelez-nous	-
69	3051218		Plate,oven Light		Appelez-nous	-
71	316015804		Shield-rear Wall,galv Steel		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112500		Template, Anti-tip Bracket				$ 3.55
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
F62	5303935061		Terminal Block Kit		Appelez-nous	-
F67	316075103		Element-bake,67			Immediately	$ 42.36
NI	3051367		Clip-wire		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
NI	316001178		Wiring Harness,main		Appelez-nous	-
NI	316073400		Plate,weight ,(3)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	5308014215		Screw				$ 2.28
NI	316205500		Nut, Hex, 10-32   (Replaces: 5303308427)				$ 11.34
