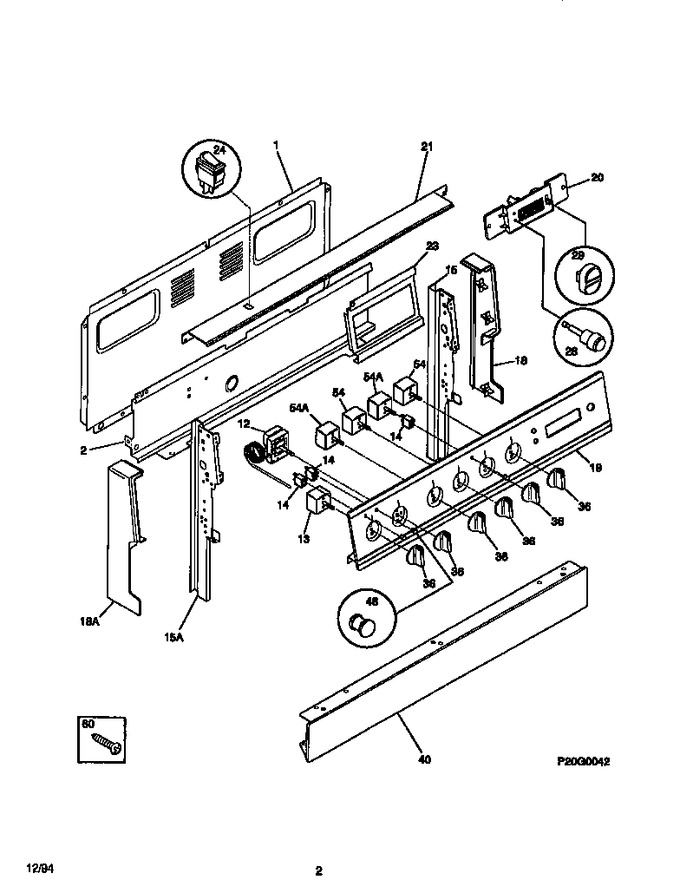

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316075201		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
12	306032400		Thermostat, Oven, Non Sc		Appelez-nous	-
13	316032500		Switch, Selector		Appelez-nous	-
14	316022503		Light/lamp, Indicator, 250 V, (3)			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
19	316014714		Panel, Control, Metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
21	316014801		Trim-canopy/shield, Black, Top		Appelez-nous	-
23	316015007		Bracket-clock Mtg		Appelez-nous	-
24	5308015487		Switch,oven Light ,rocker				$ 61.43
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
36	316015203		Knob, Control, Infinite Sw		Appelez-nous	-
40	316062329		Panel, Manifold, Black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
15A	316023111		Support-backguard, Lh		Appelez-nous	-
18A	316021801		End Cap, Black, Lh				$ 94.29
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60A	316021109		Screw, Hex, 8, 18 X 3/8, Back/bodyside (non-illustrated)   (Replaces: 316021105)			Immediately	$ 27.50
60B	5303281584		Screw, Truss Head, 8, 18 X 1/2 (non-illustrated)		Appelez-nous	-
